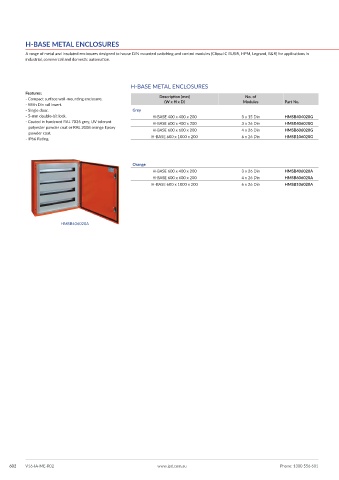

H-BASE METAL ENCLOSURES
A range of metal and insulated enclosures designed to house DIN mounted switching and control modules (Clipsal C BUS®, HPM, Legrand, B&R) for applications in
industrial, commercial and domestic automation.

H-BASE METAL ENCLOSURES
Features:
No. of
- Compact surface wall-mounting enclosure. Description (mm) Modules Part No.
(W x H x D)
- With Din rail insert.
- Single door. Grey
- 5-mm double-bit lock. H-BASE 400 x 400 x 200 3 x 15 Din HMSB404020G
- Coated in hardened RAL 7035 grey, UV tolerant H-BASE 600 x 400 x 200 3 x 26 Din HMSB406020G
polyester powder coat or RAL 2008 orange Epoxy H-BASE 600 x 600 x 200 4 x 26 Din HMSB606020G
powder coat.
- IP66 Rating. H-BASE 600 x 1000 x 200 6 x 26 Din HMSB106020G

Orange
H-BASE 600 x 400 x 200 3 x 26 Din HMSB406020A
H-BASE 600 x 600 x 200 4 x 26 Din HMSB606020A
H-BASE 600 x 1000 x 200 6 x 26 Din HMSB106020A

HMSB406020A
