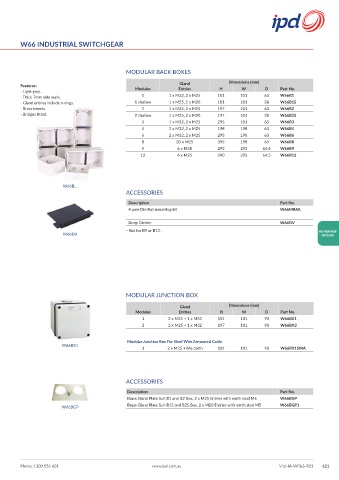

Page 629 - V16 Catalogue Final

W66 INDUSTRIAL SWITCHGEAR

MODULAR BACK BOXES

Gland
Features: Modules Entries H Dimensions (mm) D Part No.
W
- Light grey.
- Thick 7mm side walls. 1 1 x M32, 2 x M25 101 101 63 W66B1
- Gland entries include o-rings. 1 shallow 1 x M25, 2 x M20 101 101 38 W66B1S
- Brass inserts. 2 1 x M32, 2 x M25 197 101 63 W66B2
- Bridges fitted. 2 shallow 1 x M25, 2 x M20 197 101 38 W66B2S
3 1 x M32, 2 x M25 295 101 63 W66B3
4 2 x M32, 2 x M25 198 198 63 W66B4
6 2 x M32, 2 x M25 295 198 63 W66B6
8 20 x M25 395 198 63 W66B8
9 6 x M25 293 293 64.5 W66B9
12 6 x M25 390 293 64.5 W66B12

W66B...
ACCESSORIES

Description Part No.
4 pole Din Rail mounting kit W66MRAIL

Deep Divider W66DV
- Not for B9 or B12. WEATHERPROOF
W66DV SWITCHING

MODULAR JUNCTION BOX

Gland Dimensions (mm)
Modules Entries H W D Part No.
1 2 x M25 + 1 x M32 101 101 90 W66BX1
2 2 x M25 + 1 x M32 197 101 90 W66BX2

Modular Junction Box For Steel Wire Armoured Cable
W66BX1
1 2 x M25 + M6 earth 101 101 90 W66BX1SWA

ACCESSORIES
Description Part No.
Brass Gland Plate Suit B1 and B2 Box, 2 x M25 Entries with earth stud M6 W66BGP
W66BGP Brass Gland Plate Suit B1S and B2S Box, 2 x M20 Entries with earth stud M5 W66BGP1

Phone: 1300 556 601 www.ipd.com.au V16-IA-WP&S-R01 621
