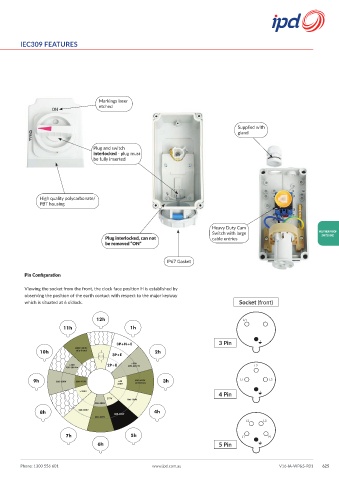

IEC309 FEATURES
Markings laser
etched
Supplied with
gland
Plug and switch
interlocked - plug must
be fully inserted
High quality polycarbonate/
PBT housing
Heavy Duty Cam
Switch with large WEATHERPROOF
Plug interlocked, can not cable entries SWITCHING
be removed “ON”
IP67 Gasket
Pin Configuration
Viewing the socket from the front, the clock face position H is established by
observing the position of the earth contact with respect to the major keyway
which is situated at 6 o’clock. Socket (front)
3 Pin
4 Pin
5 Pin
