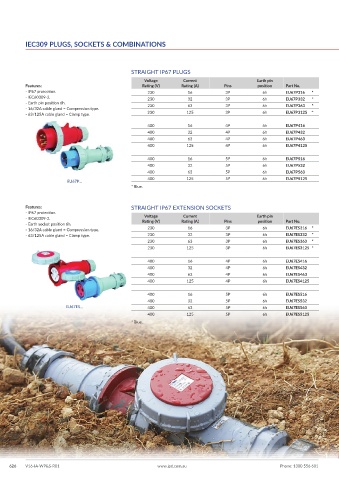

Page 634 - V16 Catalogue Final

IEC309 PLUGS, SOCKETS & COMBINATIONS

STRAIGHT IP67 PLUGS
Voltage Current Earth pin
Features: Rating (V) Rating (A) Pins position Part No.
- IP67 protection. 230 16 3P 6h EU67P316 *
- IEC60309-2. 230 32 3P 6h EU67P332 *
- Earth pin position 6h. 230 63 3P 6h EU67P363 *
- 16/32A cable gland = Compression type.
- 63/125A cable gland = Clamp type. 230 125 3P 6h EU67P3125 *

400 16 4P 6h EU67P416
400 32 4P 6h EU67P432
400 63 4P 6h EU67P463
400 125 4P 6h EU67P4125

400 16 5P 6h EU67P516
400 32 5P 6h EU67P532
400 63 5P 6h EU67P563
400 125 5P 6h EU67P5125
EU67P...
* Blue.

Features: STRAIGHT IP67 EXTENSION SOCKETS
- IP67 protection.
Current
Voltage
- IEC60309-2. Rating (V) Rating (A) Pins Earth pin Part No.
position
- Earth socket position 6h.
- 16/32A cable gland = Compression type. 230 16 3P 6h EU67ES316 *
- 63/125A cable gland = Clamp type. 230 32 3P 6h EU67ES332 *
230 63 3P 6h EU67ES363 *
230 125 3P 6h EU67ES3125 *
400 16 4P 6h EU67ES416
400 32 4P 6h EU67ES432
400 63 4P 6h EU67ES463
400 125 4P 6h EU67ES4125

400 16 5P 6h EU67ES516
400 32 5P 6h EU67ES532
EU67ES... 400 63 5P 6h EU67ES563
400 125 5P 6h EU67ES5125
* Blue.
