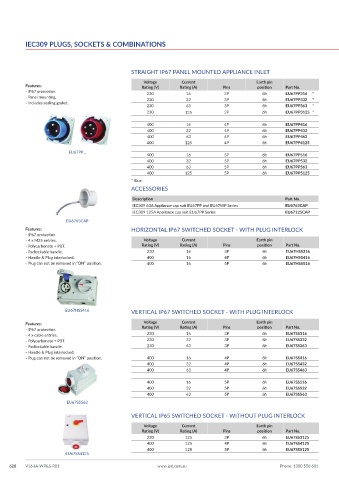

Page 636 - V16 Catalogue Final

IEC309 PLUGS, SOCKETS & COMBINATIONS

STRAIGHT IP67 PANEL MOUNTED APPLIANCE INLET
Voltage Current Earth pin
Features: Rating (V) Rating (A) Pins position Part No.
- IP67 protection. 230 16 3P 6h EU67PP316 *
- Panel mounting. 230 32 3P 6h EU67PP332 *
- Includes sealing gasket.
230 63 3P 6h EU67PP363 *
230 125 3P 6h EU67PP3125 *

400 16 4P 6h EU67PP416
400 32 4P 6h EU67PP432
400 63 4P 6h EU67PP463
400 125 4P 6h EU67PP4125
EU67PP...
400 16 5P 6h EU67PP516
400 32 5P 6h EU67PP532
400 63 5P 6h EU67PP563
400 125 5P 6h EU67PP5125
* Blue.
ACCESSORIES

Description Part No.
IEC309 63A Appliance cap suit EU67PP and EU67WP Series EU6763CAP
IEC309 125A Appliance cap suit EU67PP Series EU67125CAP
EU6763CAP
Features: HORIZONTAL IP67 SWITCHED SOCKET - WITH PLUG INTERLOCK
- IP67 protection.
- 4 x M25 entries. Voltage Current Earth pin
- Polycarbonate + PBT. Rating (V) Rating (A) Pins position Part No.
- Padlockable handle. 230 16 3P 6h EU67HSS316
- Handle & Plug interlocked. 400 16 4P 6h EU67HSS416
- Plug can not be removed in “ON” position. 400 16 5P 6h EU67HSS516

EU67HSS416 VERTICAL IP67 SWITCHED SOCKET - WITH PLUG INTERLOCK

Features: Voltage Current Earth pin
- IP67 protection. Rating (V) Rating (A) Pins position Part No.
- 4 x cable entries. 230 16 3P 6h EU67SS316
- Polycarbonate + PBT. 230 32 3P 6h EU67SS332
- Padlockable handle. 230 63 3P 6h EU67SS363
- Handle & Plug interlocked.
- Plug can not be removed in “ON” position. 400 16 4P 6h EU67SS416
400 32 4P 6h EU67SS432
400 63 4P 6h EU67SS463

400 16 5P 6h EU67SS516
400 32 5P 6h EU67SS532
400 63 5P 6h EU67SS563
EU67SS563
VERTICAL IP65 SWITCHED SOCKET - WITHOUT PLUG INTERLOCK

Voltage Current Earth pin
Rating (V) Rating (A) Pins position Part No.
230 125 3P 6h EU67SS3125
400 125 4P 6h EU67SS4125
400 125 5P 6h EU67SS5125
EU67SS4125
