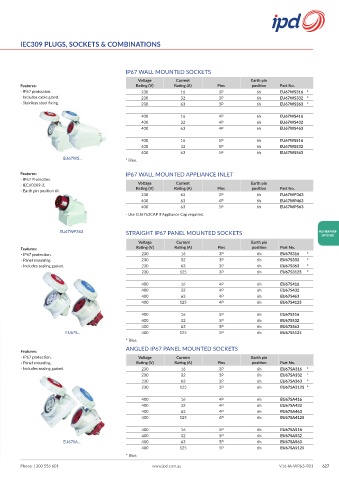

Page 635 - V16 Catalogue Final

IEC309 PLUGS, SOCKETS & COMBINATIONS

IP67 WALL MOUNTED SOCKETS
Voltage Current Earth pin
Features: Rating (V) Rating (A) Pins position Part No.
- IP67 protection. 230 16 3P 6h EU67WS316 *
- Includes cable gland. 230 32 3P 6h EU67WS332 *
- Stainless steel fixing. 230 63 3P 6h EU67WS363 *

400 16 4P 6h EU67WS416
400 32 4P 6h EU67WS432
400 63 4P 6h EU67WS463
400 16 5P 6h EU67WS516
400 32 5P 6h EU67WS532
400 63 5P 6h EU67WS563
EU67WS... * Blue.

Features: IP67 WALL MOUNTED APPLIANCE INLET
- IP67 Protection.
- IEC60309-2. Voltage Current Earth pin
- Earth pin position 6h. Rating (V) Rating (A) Pins position Part No.
230 63 3P 6h EU67WP363
400 63 4P 6h EU67WP463
400 63 5P 6h EU67WP563
- Use EU6763CAP if Appliance Cap required.

EU67WP363 STRAIGHT IP67 PANEL MOUNTED SOCKETS WEATHERPROOF
SWITCHING
Voltage Current Earth pin
Features: Rating (V) Rating (A) Pins position Part No.
- IP67 protection. 230 16 3P 6h EU67S316 *
- Panel mounting. 230 32 3P 6h EU67S332 *
- Includes sealing gasket. 230 63 3P 6h EU67S363 *
230 125 3P 6h EU67S3125 *

400 16 4P 6h EU67S416
400 32 4P 6h EU67S432
400 63 4P 6h EU67S463
400 125 4P 6h EU67S4125
400 16 5P 6h EU67S516
400 32 5P 6h EU67S532
400 63 5P 6h EU67S563
EU67S... 400 125 5P 6h EU67S5125
* Blue.
ANGLED IP67 PANEL MOUNTED SOCKETS
Features:
- IP67 protection. Voltage Current Earth pin
- Panel mounting. Rating (V) Rating (A) Pins position Part No.
- Includes sealing gasket. 230 16 3P 6h EU67SA316 *
230 32 3P 6h EU67SA332 *
230 63 3P 6h EU67SA363 *
230 125 3P 6h EU67SA3125 *

400 16 4P 6h EU67SA416
400 32 4P 6h EU67SA432
400 63 4P 6h EU67SA463
400 125 4P 6h EU67SA4125

400 16 5P 6h EU67SA516
400 32 5P 6h EU67SA532
EU67SA... 400 63 5P 6h EU67SA563
400 125 5P 6h EU67SA5125
* Blue.
