MOTOR PROTECTION

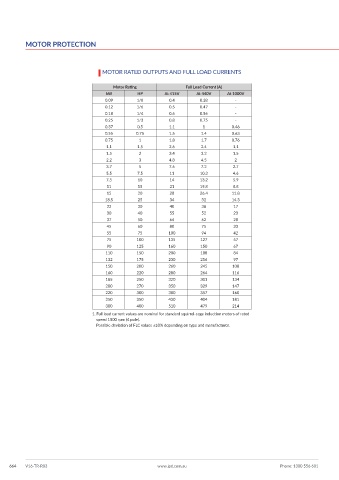

MOTOR RATED OUTPUTS AND FULL LOAD CURRENTS

Motor Rating Full Load Current (A)
kW HP At 415V At 440V At 1000V
0.09 1/8 0.4 0.38 -
0.12 1/6 0.5 0.47 -
0.18 1/4 0.6 0.56 -
0.25 1/3 0.8 0.75 -
0.37 0.5 1.1 1 0.46
0.55 0.75 1.5 1.4 0.63
0.75 1 1.8 1.7 0.76
1.1 1.5 2.6 2.4 1.1
1.5 2 3.4 3.2 1.5
2.2 3 4.8 4.5 2
3.7 5 7.6 7.2 2.7
5.5 7.5 11 10.3 4.6
7.5 10 14 13.2 5.9
11 15 21 19.8 8.8
15 20 28 26.4 11.8
18.5 25 34 32 14.3
22 30 40 38 17
30 40 55 52 23
37 50 66 62 28
45 60 80 75 33
55 75 100 94 42
75 100 135 127 57
90 125 160 150 67
110 150 200 188 84
132 175 230 216 97
150 200 260 245 108
160 220 280 264 116
185 250 320 301 134
200 270 350 329 147
220 300 380 357 160
250 350 430 404 181
300 400 510 479 214
1. Full load current values are nominal for standard squirrel-cage induction motors of rated
speed 1500 rpm (4 pole).
Possible deviation of FLC values ±10% depending on type and manufacturer.
