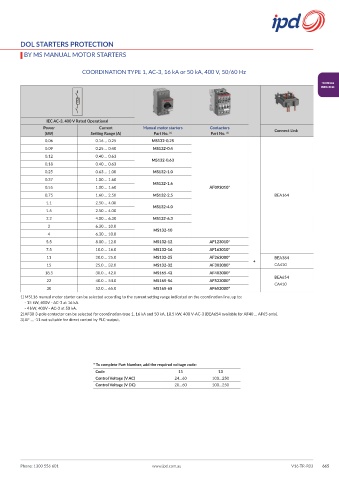

DOL STARTERS PROTECTION
BY MS MANUAL MOTOR STARTERS

COORDINATION TYPE 1, AC-3, 16 kA or 50 kA, 400 V, 50/60 Hz

TECHNICAL
RESOURCES

IEC AC-3, 400 V Rated Operational
Power Current Manual motor starters Contactors Connect Link
(kW) Setting Range (A) Part No. (1) Part No. (2)
0.06 0.16 ... 0.25 MS132-0.25
0.09 0.25 ... 0.40 MS132-0.4
0.12 0.40 ... 0.63
MS132-0.63
0.18 0.40 ... 0.63
0.25 0.63 ... 1.00 MS132-1.0
0.37 1.00 ... 1.60
MS132-1.6
0.55 1.00 ... 1.60 AF093010*
0.75 1.60 ... 2.50 MS132-2.5 BEA164
1.1 2.50 ... 4.00
MS132-4.0
1.5 2.50 ... 4.00
2.2 4.00 ... 6.30 MS132-6.3
3 6.30 ... 10.0
MS132-10
4 6.30 ... 10.0
5.5 8.00 ... 12.0 MS132-12 AF123010*
7.5 10.0 ... 16.0 MS132-16 AF163010*
11 20.0 ... 25.0 MS132-25 AF263000* BEA384
+
15 25.0 ... 32.0 MS132-32 AF303000* CA410
18.5 30.0 ... 42.0 MS165-42 AF403000*
BEA654
22 40.0 ... 54.0 MS165-54 AF523000*
CA410
30 52.0 ... 65.0 MS165-65 AF653000*
1) MS116 manual motor starter can be selected according to the current setting range indicated on the coordination line, up to:
- 15 kW, 400V - AC-3 at 16 kA.
- 4 kW, 400V - AC-3 at 50 kA.
2) AF38 3-pole contactor can be selected for coordination type 1, 16 kA and 50 kA, 18.5 kW, 400 V-AC-3 (BEA654 available for AF40 ... AF65 only).
3) AF ... -11 not suitable for direct control by PLC-output.

* To complete Part Number, add the required voltage code:
Code 11 13
Control Voltage (V AC) 24…60 100…250
Control Voltage (V DC) 20…60 100…250
