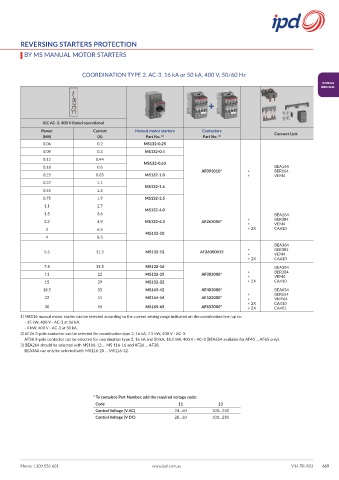

REVERSING STARTERS PROTECTION
BY MS MANUAL MOTOR STARTERS

COORDINATION TYPE 2, AC-3, 16 kA or 50 kA, 400 V, 50/60 Hz
TECHNICAL
RESOURCES

+

IEC AC-3, 400 V Rated operational
Power Current Manual motor starters Contactors Connect Link
(kW) (A) Part No. (1) Part No. (2)
0.06 0.2 MS132-0.25
0.09 0.3 MS132-0.4
0.12 0.44
MS132-0.63
0.18 0.6 BEA164
AF093010* + BER164
0.25 0.85 MS132-1.0 + VEM4
0.37 1.1
MS132-1.6
0.55 1.5
0.75 1.9 MS132-2.5
1.1 2.7
MS132-4.0
1.5 3.6 BEA264
2.2 4.9 MS132-6.3 AF263000* + BER384
+ VEM4
3 6.5 + 2X CA410
MS132-10
4 8.5
BEA384
5.5 11.5 MS132-12 AF26300013 + BER384
+ VEM4
+ 2X CA410
7.5 15.5 MS132-16 BEA384
+ BER384
11 22 MS132-25 AF303000*
+ VEM4
15 29 MS132-32 + 2X CA410
18.5 35 MS165-42 AF403000* BEA654
+ BER654
22 41 MS165-54 AF523000* + VM964
+ 2X CA410
30 55 MS165-65 AF653000* + 2X CA401
1) MS116 manual motor starter can be selected according to the current setting range indicated on the coordination line, up to:
- 15 kW, 400 V - AC-3 at 16 kA.
- 4 kW, 400 V - AC-3 at 50 kA.
2) AF26 3-pole contactor can be selected for coordination type 2, 16 kA, 7.5 kW, 400 V - AC-3.
AF38 3-pole contactor can be selected for coordination type 2, 16 kA and 50 kA, 18.5 kW, 400 V - AC-3 (BEA654 available for AF40 ... AF65 only).
3) BEA264 should be selected with MS116-12 ... MS 116-16 and AF26 ... AF38.
BEA384 can only be selected with MS116-20 ... MS116-32.

* To complete Part Number, add the required voltage code:
Code 11 13
Control Voltage (V AC) 24…60 100…250
Control Voltage (V DC) 20…60 100…250
