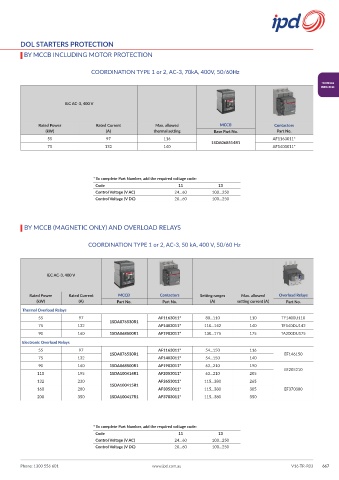

DOL STARTERS PROTECTION
BY MCCB INCLUDING MOTOR PROTECTION

COORDINATION TYPE 1 or 2, AC-3, 70kA, 400V, 50/60Hz

TECHNICAL
RESOURCES

IEC AC-3, 400 V

Rated Power Rated Current Max. allowed MCCB Contactors
(kW) (A) thermal setting Base Part No. Part No.
55 97 116 AF1163011*
1SDA068514R1
75 132 140 AF1403011*

* To complete Part Number, add the required voltage code:
Code 11 13
Control Voltage (V AC) 24…60 100…250
Control Voltage (V DC) 20…60 100…250

BY MCCB (MAGNETIC ONLY) AND OVERLOAD RELAYS

COORDINATION TYPE 1 or 2, AC-3, 50 kA, 400 V, 50/60 Hz

IEC AC-3, 400 V

Rated Power Rated Current MCCB Contactors Setting ranges Max. allowed Overload Relays
(kW) (A) Part No. Part No. (A) setting current (A) Part No.
Thermal Overload Relays
55 97 AF1163011* 80...110 110 TF1400U110
1SDA076530R1
75 132 AF1403011* 110...142 140 TF140DU142
90 160 1SDA068500R1 AF1903011* 130...175 175 TA200DU175
Electronic Overload Relays
55 97 AF1163011* 54...150 116
1SDA076530R1 EF146150
75 132 AF1403011* 54...150 140
90 160 1SDA068500R1 AF1903011* 63...210 190
EF205210
110 195 1SDA100414R1 AF2053011* 63...210 205
132 230 AF2653011* 115...380 265
1SDA100415R1
160 280 AF3053011* 115...380 305 EF370380
200 350 1SDA100417R1 AF3703011* 115...380 350

* To complete Part Number, add the required voltage code:
Code 11 13
Control Voltage (V AC) 24…60 100…250
Control Voltage (V DC) 20…60 100…250

Phone: 1300 556 601 www.ipd.com.au V16-TR-R03 667
