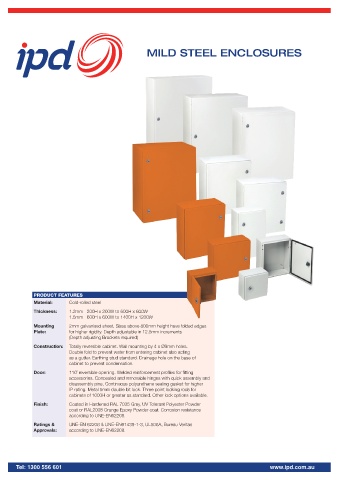

MILD STEEL ENCLOSURES

PRODUCT FEATURES
Material: Cold-rolled steel
Thickness: 1.2mm 200H x 200W to 600H x 600W
1.5mm 600H x 600W to 1400H x 1200W
Mounting 2mm galvanised sheet. Sizes above 800mm height have folded edges
Plate: for higher rigidity. Depth adjustable in 12.5mm increments
(Depth adjusting Brackets required)
Construction: Totally reversible cabinet. Wall mounting by 4 x Ø9mm holes.
Double fold to prevent water from entering cabinet also acting
as a gutter. Earthing stud standard. Drainage hole on the base of
cabinet to prevent condensation.
Door: 110˚ reversible opening. Welded reinforcement profiles for fitting
accessories. Concealed and removable hinges with quick assembly and
disassembly pins. Continuous polyurethane sealing gasket for higher
IP rating. Metal 5mm double bit lock. Three point locking rods for
cabinets of 1000H or greater as standard. Other lock options available.
Finish: Coated in Hardened RAL 7035 Grey, UV Tolerant Polyester Powder
coat or RAL2008 Orange Epoxy Powder coat. Corrosion resistance
according to UNE-EN62208.
Ratings & UNE-EN 62208 & UNE-EN61439-1-3, UL508A, Bureau Veritas
Approvals: according to UNE-EN62208.
