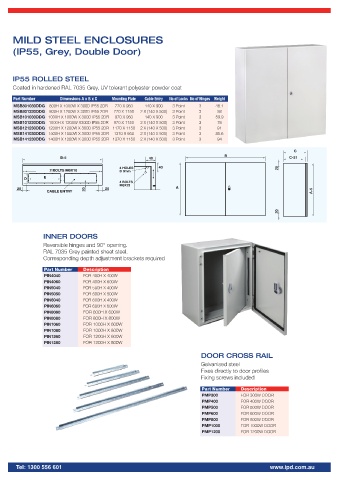

MILD STEEL ENCLOSURES

(IP55, Grey, Double Door)

IP55 ROLLED STEEL
Coated in hardened RAL 7035 Grey, UV tolerant polyester powder coat

Part Number Dimensions A x B x C Mounting Plate Cable Entry No of Locks No of Hinges Weight
MSB801030DDG 800H X 1000W X 300D IP55 2DR 770 X 950 140 X 900 3 Point 3 48.1
MSB801230DDG 800H X 1200W X 300D IP55 2DR 770 X 1150 2 X (140 X 500) 3 Point 3 58
MSB101030DDG 1000H X 1000W X 300D IP55 2DR 970 X 950 140 X 900 3 Point 3 59.9
MSB101230DDG 1000H X 1200W X300D IP55 2DR 970 X 1150 2 X (140 X 500) 3 Point 3 78
MSB121230DDG 1200H X 1200W X 300D IP55 2DR 1170 X 1150 2 X (140 X 500) 3 Point 3 91
MSB141030DDG 1400H X 1000W X 300D IP55 2DR 1370 X 950 2 X (140 X 500) 3 Point 3 80.6
MSB141230DDG 1400H X 1200W X 300D IP55 2DR 1370 X 1150 2 X (140 X 500) 3 Point 3 94

C
B-5 40 B C-21
4 HOLES 40 20
2 BOLTS M6X10 D 9mm
D E
4 BOLTS
M8X25
20 20 A
CABLE ENTRY 20 A-5

20

INNER DOORS
Reversible hinges and 90° opening.
RAL 7035 Grey painted sheet steel.
Corresponding depth adjustment brackets required
Part Number Description
PIN4040 FOR 400H X 400W
PIN4060 FOR 400H X 600W
PIN5040 FOR 500H X 400W
PIN5050 FOR 500H X 500W
PIN6040 FOR 600H X 400W
PIN6060 FOR 600H X 600W
PIN8060 FOR 800H X 600W
PIN8080 FOR 800H X 800W
PIN1060 FOR 1000H X 600W
PIN1080 FOR 1000H X 800W
PIN1260 FOR 1200H X 600W
PIN1280 FOR 1200H X 800W

DOOR CROSS RAIL
Galvanised steel
Fixes directly to door profiles
Fixing screws included

Part Number Description
PMP300 FOR 300W DOOR
PMP400 FOR 400W DOOR
PMP500 FOR 500W DOOR
PMP600 FOR 600W DOOR
PMP800 FOR 800W DOOR
PMP1000 FOR 1000W DOOR
PMP1200 FOR 1200W DOOR
