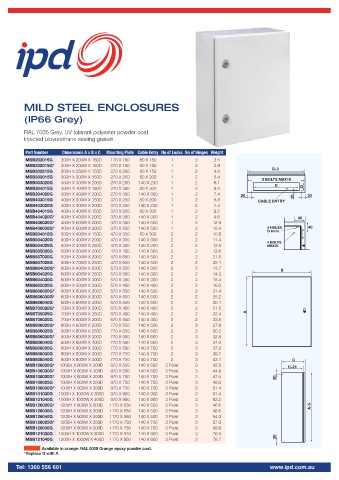

MILD STEEL ENCLOSURES

(IP66 Grey)

RAL 7035 Grey, UV tolerant polyester powder coat
Injected ployurethane sealing gasket C
B C-21
Part Number Dimensions A x B x C Mounting Plate Cable Entry No of Locks No of Hinges Weight
20
MSB202015G 200H X 200W X 150D 170 X 150 80 X 150 1 2 2.5
MSB302015G* 300H X 200W X 150D 270 X 150 80 X 150 1 2 3.9 40
MSB302515G 300H X 250W X 150D 270 X 200 80 X 150 1 2 4.6 B-3
MSB303015G 300H X 300W X 150D 270 X 250 80 X 200 1 2 5.4 2 BOLTS M6X10 4 HOLES 40
D 9mm
MSB303020G 300H X 300W X 200D 270 X 250 140 X 230 1 2 6.1 E A A-5
MSB304015G 300H X 400W X 150D 270 X 350 80 X 300 1 2 6.5 D 4 BOLTS C
MSB304020G 300H X 400W X 200D 270 X 350 140 X 300 1 2 7.4 20 20 20 M8X25 B C-21
MSB403015G 400H X 300W X 150D 370 X 250 80 X 200 1 2 6.8 CABLE ENTRY
MSB403020G 400H X 300W X 200D 370 X 250 140 X 230 1 2 7.4 20
MSB404015G 400H X 400W X 150D 370 X 350 80 X 300 1 2 8.2 20
MSB404020G* 400H X 400W X 200D 370 X 350 140 X 300 1 2 9.6 40
B-3
MSB406020G* 400H X 600W X 200D 370 X 550 140 X 500 1 2 12.9
15.4
MSB406030G* 400H X 600W X 300D 370 X 550 140 X 500 1 2 2 BOLTS M6X10 4 HOLES 40
D 9mm
MSB504015G 500H X 400W X 150D 470 X 350 80 X 300 2 2 10.8 A A-5
E
MSB504020G 500H X 400W X 200D 470 X 350 140 X 300 2 2 11.4 D 4 BOLTS
MSB504025G 500H X 400W X 250D 470 X 350 140 X 300 2 20 2 12.5 20 M8X25
13.6
MSB505020G 500H X 500W X 200D 470 X 450 140 X 300 2 2 CABLE ENTRY 20
MSB507020G 500H X 700W X 200D 470 X 650 140 X 500 2 2 21.5
MSB507025G 500H X 700W X 250D 470 X 650 140 X 500 2 2 22.1 C 20
MSB604020G* 600H X 400W X 200D 570 X 350 140 X 300 2 2 13.7 B C-21
MSB604025G 600H X 400W X 250D 570 X 350 140 X 300 2 2 14.3
MSB604030G 600H X 400W X 300D 570 X 350 140 X 300 2 2 15.4 20
MSB605020G 600H X 500W X 200D 570 X 450 140 X 400 2 2 16.0
MSB606020G* 600H X 600W X 200D 570 X 550 140 X 500 2 2 21.4
40
MSB606030G* 600H X 600W X 300D 570 X 550 B-3 140 X 500 2 2 25.2
2
MSB606040G 600H X 600W X 400D 570 X 550 140 X 500 2 4 HOLES 30.1 40
2 BOLTS M6X10
2
MSB705020G* 700H X 500W X 200D 670 X 450 140 X 400 2 D 9mm 21.5 A-5
MSB705025G 700H X 500W X 250D 670 X 450 E 140 X 400 D 2 2 22.4 A
2
MSB706020G 700H X 600W X 200D 670 X 550 140 X 400 2 4 BOLTS 23.5
M8X25
20
20
MSB806020G* 800H X 600W X 200D 770 X 550 140 X 500 20 2 3 27.9
CABLE ENTRY
MSB806025G 800H X 600W X 250D 770 X 550 140 X 500 2 3 30.2
MSB806030G* 800H X 600W X 300D 770 X 550 140 X 500 2 3 32.8
MSB806040G 800H X 600W X 400D 770 X 550 140 X 500 2 3 34.0 20
MSB808020G 800H X 800W X 200D 770 X 550 140 X 700 2 3 37.2
MSB808030G 800H X 800W X 300D 770 X 750 140 X 700 2 3 39.7
MSB808040G 800H X 800W X 400D 770 X 750 140 X 700 2 3 43.1 C
MSB106020G* 1000H X 600W X 200D 970 X 550 140 X 500 3 Point 3 42.5 B C-21
MSB106030G* 1000H X 600W X 300D 970 X 550 140 X 500 3 Point 3 44.8
MSB108020G* 1000H X 800W X 200D 970 X 750 140 X 700 3 Point 3 47.0 20
MSB108025G 1000H X 800W X 250D 970 X 750 140 X 700 3 Point 3 49.0
MSB108030G* 1000H X 800W X 300D 970 X 750 140 X 700 3 Point 3 51.4
40
B-3
MSB101030G 1000H X 1000W X 300D 970 X 950 140 X 900 3 Point 3 61.4
4 HOLES
MSB101040G 1000H X 1000W X 400D 970 X 950 140 X 900 3 Point 40 3 63.2
2 BOLTS M6X10
D 9mm
MSB126020G* 1200H X 600W X 200D 1170 X 550 140 X 500 3 Point 3 A 46.6 A-5
E
D
MSB126030G 1200H X 600W X 300D 1170 X 550 140 X 500 3 Point 3 48.6
4 BOLTS
MSB126040G 20 1200H X 600W X 400D 1170 X 550 140 X 500 3 Point 3 54.0
M8X25
20
20
MSB128025G* 1200H X 800W X 250D 1170 X 750 140 X 700 3 Point 3 57.0
CABLE ENTRY
MSB128030G 1200H X 800W X 300D 1170 X 750 140 X 700 3 Point 3 58.6
MSB121030G 1200H X 1000W X 300D 1170 X 910 140 X 900 3 Point 3 76.0
MSB121040G 1200H X 1000W X 400D 1170 X 950 140 X 900 3 Point 3 78.7 20
Available in orange: RAL 2008 Orange epoxy powder coat.
*Replace G with A
