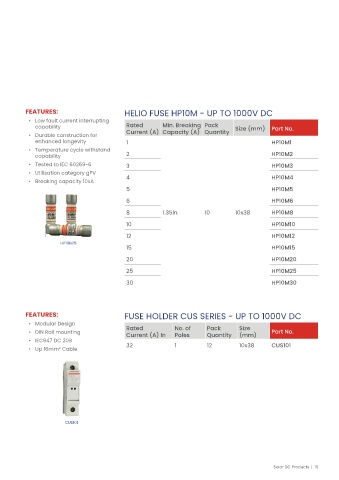

Page 15 - Solar DC Products

FEATURES: HELIO FUSE HP10M - UP TO 1000V DC
• Low fault current interrupting
capability Rated Min. Breaking Pack Size (mm) Part No.
Current (A) Capacity (A) Quantity
• Durable construction for
enhanced longevity 1 HP10M1
• Temperature cycle withstand
2 HP10M2
capability
• Tested to IEC 60269-6 3 HP10M3
• Utilisation category gPV
4 HP10M4
• Breaking capacity 10kA
5 HP10M5

6 HP10M6
8 1.35In 10 10x38 HP10M8

10 HP10M10
12 HP10M12
HP10M15
15 HP10M15
20 HP10M20

25 HP10M25

30 HP10M30

FEATURES: FUSE HOLDER CUS SERIES - UP TO 1000V DC

• Modular Design
Rated No. of Pack Size
• DIN Rail mounting Part No.
Current (A) In Poles Quantity (mm)
• IEC947 DC 20B
32 1 12 10x38 CUS101
• Up 16mm Cable
2

CUS101

Solar DC Products | 15
