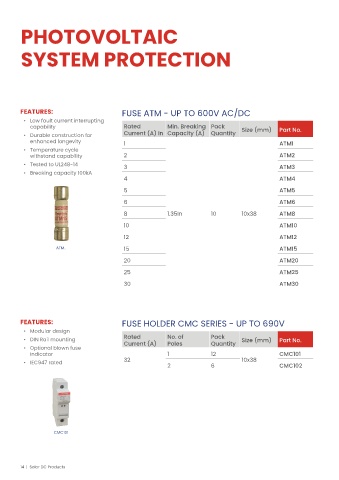

Page 14 - Solar DC Products

PHOTOVOLTAIC

SYSTEM PROTECTION

FEATURES: FUSE ATM - UP TO 600V AC/DC
• Low fault current interrupting
capability Rated Min. Breaking Pack
Size (mm) Part No.
• Durable construction for Current (A) In Capacity (A) Quantity
enhanced longevity
1 ATM1
• Temperature cycle
withstand capability 2 ATM2
• Tested to UL248-14
3 ATM3
• Breaking capacity 100kA
4 ATM4
5 ATM5

6 ATM6
8 1.35In 10 10x38 ATM8

10 ATM10

12 ATM12
ATM.. 15 ATM15

20 ATM20
25 ATM25

30 ATM30

FEATURES: FUSE HOLDER CMC SERIES - UP TO 690V
• Modular design
Rated No. of Pack
• DIN Rail mounting Size (mm) Part No.
Current (A) Poles Quantity
• Optional blown fuse
indicator 1 12 CMC101
32 10x38
• IEC947 rated
2 6 CMC102

CMC101
