ABB MOTOR PROTECTION AND CONTROL 3/395

—

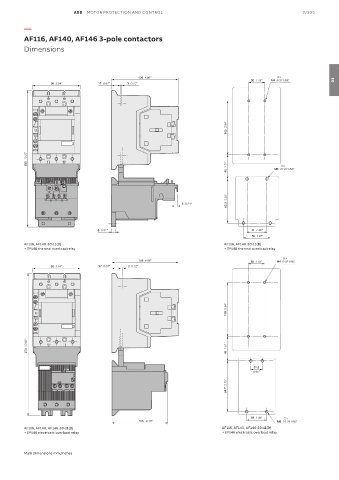

AF116, AF140, AF146 3-pole contactors
Dimensions

126 4.96" 4 x
30 1.18" M4 8-32 UNC 03
90 3.54" 17 0.67" 3 0.12"

100 3.94"

259 10.20"
45 1.77" M5 10-24 UNC
4 x

82.3 3.24"
6 0.24"

8 0.31" 37 1.46"
50 1.97"
AF116, AF140-30-11(B) AF116, AF140-30-11(B)
+ TF140 thermal overload relay + TF140 thermal overload relay
6 x
126 4.96" 30 1.18" M4 8-32 UNC
90 3.54" 17 0.67" 3 0.12"

100 3.94"

270 10.63" 46 1.81"

21.5
0.85"
94.7 3.73"

37 1.46" 2 x
105 4.13" M5 10-24 UNC
AF116, AF140, AF146-30-11(B) AF116, AF140, AF146-30-11(B)
+ EF146 electronic overload relay + EF146 electronic overload relay

Main dimensions mm, inches
