ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 2/11

—

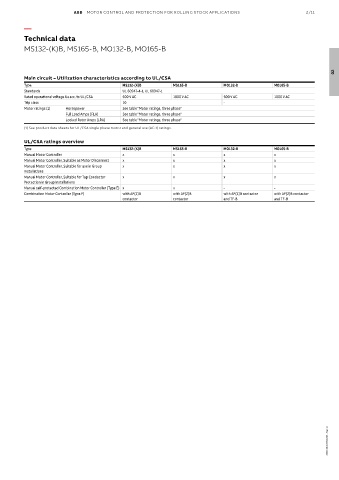

Technical data

MS132-(K)B, MS165-B, MO132-B, MO165-B

02
Main circuit – Utilization characteristics according to UL/CSA
Type MS132-(K)B MS165-B MO132-B MO165-B
Standards UL 60947-4-1, UL 60947-1
Rated operational voltage Ue acc. to UL/CSA 600 V AC 1000 V AC 600 V AC 1000 V AC
Trip class 10 -
Motor ratings (1) Horsepower See table "Motor ratings, three phase"
Full Load Amps (FLA) See table "Motor ratings, three phase"
Locked Rotor Amps (LRA) See table "Motor ratings, three phase"
(1) See product data sheets for UL/CSA single phase motor and general use (AC-1) ratings.
UL/CSA ratings overview
Type MS132-(K)B MS165-B MO132-B MO165-B
Manual Motor Controller x x x x
Manual Motor Controller, Suitable as Motor Disconnect x x x x
Manual Motor Controller, Suitable for use in Group x x x x
Installations
Manual Motor Controller, Suitable for Tap Conductor x x x x
Protection in Group Installations
Manual self-protected Combination Motor Controller (Type E) x x - -
Combination Motor Controller (Type F) with AF(Z)B with AF(Z)B with AF(Z)B contactor with AF(Z)B contactor
contactor contactor and TF-B and TF-B

2CDC131100C0201 - Rev. A
