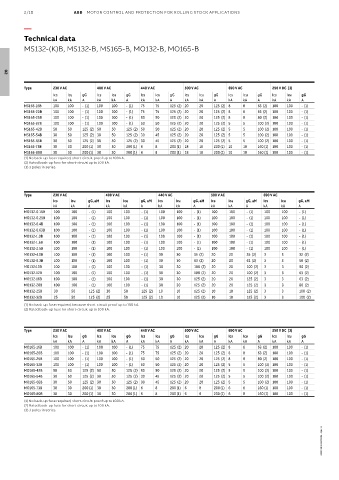

2/10 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—
Technical data

MS132-(K)B, MS132-B, MS165-B, MO132-B, MO165-B

02

Type 230 V AC 400 V AC 440 V AC 500 V AC 690 V AC 250 V DC (3)
Ics Icu gG Ics Icu gG Ics Icu gG Ics Icu gG Ics Icu gG Ics Icu gG
kA kA A kA kA A kA kA A kA kA A kA kA A kA kA A
MS165-16B 100 100 - (1) 100 100 - (1) 75 75 125 (2) 20 20 125 (2) 8 8 63 (2) 100 100 - (1)
MS165-20B 100 100 - (1) 100 100 - (1) 75 75 125 (2) 20 20 125 (2) 8 8 63 (2) 100 100 - (1)
MS165-25B 100 100 - (1) 100 100 - (1) 50 50 125 (2) 20 20 125 (2) 8 8 80 (2) 100 100 - (1)
MS165-32B 100 100 - (1) 100 100 - (1) 50 50 125 (2) 20 20 125 (2) 5 5 100 (2) 100 100 - (1)
MS165-42B 50 50 125 (2) 50 50 125 (2) 50 50 125 (2) 20 20 125 (2) 5 5 100 (2) 100 100 - (1)
MS165-54B 30 50 125 (2) 30 50 125 (2) 30 45 125 (2) 20 20 125 (2) 5 5 100 (2) 100 100 - (1)
MS165-65B 30 50 125 (2) 30 50 125 (2) 30 45 125 (2) 20 20 125 (2) 5 5 100 (2) 100 100 - (1)
MS165-73B 30 30 200 (1) 30 30 200 (1) 6 8 200 (1) 18 18 200 (1) 10 10 160 (1) 100 100 - (1)
MS165-80B 30 30 200 (1) 30 30 200 (1) 6 8 200 (1) 18 18 200 (1) 10 10 160 (1) 100 100 - (1)
(1) No back-up fuse required, short-circuit proof up to 100 kA.
(2) Rated back-up fuse for short-circuit up to 100 kA.
(3) 3 poles in series.

Type 230 V AC 400 V AC 440 V AC 500 V AC 690 V AC
Ics Icu gG, aM Ics Icu gG, aM Ics Icu gG, aM Ics Icu gG, aM Ics Icu gG, aM
kA kA A kA kA A kA kA A kA kA A kA kA A
MO132-0.16B 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1)
MO132-0.25B 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1)
MO132-0.4B 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1)
MO132-0.63B 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1)
MO132-1.0B 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1)
MO132-1.6B 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1)
MO132-2.5B 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1)
MO132-4.0B 100 100 - (1) 100 100 - (1) 30 30 35 (2) 20 20 35 (2) 3 3 32 (2)
MO132-6.3B 100 100 - (1) 100 100 - (1) 30 30 63 (2) 20 20 63 (2) 3 3 50 (2)
MO132-10B 100 100 - (1) 100 100 - (1) 30 30 100 (2) 20 20 100 (2) 3 3 50 (2)
MO132-12B 100 100 - (1) 100 100 - (1) 30 30 100 (2) 20 20 100 (2) 3 3 63 (2)
MO132-16B 100 100 - (1) 100 100 - (1) 30 30 125 (2) 20 20 125 (2) 3 3 63 (2)
MO132-20B 100 100 - (1) 100 100 - (1) 30 30 125 (2) 20 20 125 (2) 3 3 80 (2)
MO132-25B 30 50 125 (2) 30 50 125 (2) 10 10 125 (2) 10 10 125 (2) 3 3 100 (2)
MO132-32B 25 50 125 (2) 25 50 125 (2) 10 10 125 (2) 10 10 125 (2) 3 3 100 (2)
(1) No back-up fuse required, because short-circuit proof up to 100 kA.
(2) Rated back-up fuse for short-circuit up to 100 kA.

Type 230 V AC 400 V AC 440 V AC 500 V AC 690 V AC 250 V DC (3)
Ics Icu gG Ics Icu gG Ics Icu gG Ics Icu gG Ics Icu gG Ics Icu gG
kA kA A kA kA A kA kA A kA kA A kA kA A kA kA A
MO165-16B 100 100 - (1) 100 100 - (1) 75 75 125 (2) 20 20 125 (2) 8 8 63 (2) 100 100 - (1)
MO165-20B 100 100 - (1) 100 100 - (1) 75 75 125 (2) 20 20 125 (2) 8 8 63 (2) 100 100 - (1)
MO165-25B 100 100 - (1) 100 100 - (1) 50 50 125 (2) 20 20 125 (2) 8 8 80 (2) 100 100 - (1)
MO165-32B 100 100 - (1) 100 100 - (1) 50 50 125 (2) 20 20 125 (2) 5 5 100 (2) 100 100 - (1)
MO165-42B 50 50 125 (2) 50 50 125 (2) 50 50 125 (2) 20 20 125 (2) 5 5 100 (2) 100 100 - (1)
MO165-54B 30 50 125 (2) 30 50 125 (2) 30 45 125 (2) 20 20 125 (2) 5 5 100 (2) 100 100 - (1)
MO165-65B 30 50 125 (2) 30 50 125 (2) 30 45 125 (2) 20 20 125 (2) 5 5 100 (2) 100 100 - (1)
MO165-73B 30 30 200 (1) 30 30 200 (1) 6 8 200 (1) 6 8 200 (1) 6 8 160 (1) 100 100 - (1)
MO165-80B 30 30 200 (1) 30 30 200 (1) 6 8 200 (1) 6 8 200 (1) 6 8 160 (1) 100 100 - (1)
(1) No back-up fuse required, short-circuit proof up to 100 kA.
(2) Rated back-up fuse for short-circuit up to 100 kA.
(3) 3 poles in series.

2CDC131100C0201 - Rev. A
