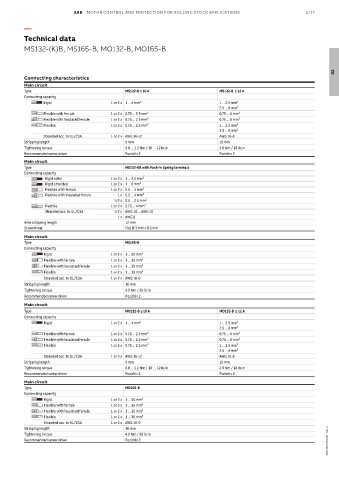

Page 41 - Contactors_Catalogue

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 2/17

—
Technical data

MS132-(K)B, MS165-B, MO132-B, MO165-B

02
Connecting characteristics
Main circuit
Type MS132-B ≤ 10 A MS132-B ≥ 12 A
Connecting capacity
Rigid 1 or 2 x 1 ... 4 mm² 1 ... 2.5 mm²
2.5 ... 6 mm²
Flexible with ferrule 1 or 2 x 0.75 ... 2.5 mm² 0.75 ... 6 mm²
Flexible with insulated ferrule 1 or 2 x 0.75 ... 2.5 mm² 0.75 ... 6 mm²
Flexible 1 or 2 x 0.75 ... 2.5 mm² 1 ... 2.5 mm²
2.5 ... 6 mm²
Stranded acc. to UL/CSA 1 or 2 x AWG 16-12 AWG 16-8
Stripping length 9 mm 10 mm
Tightening torque 0.8 ... 1.2 Nm / 10 … 12 Ib.in 2.0 Nm / 18 Ib.in
Recommended screw driver Pozidriv 2 Pozidriv 2
Main circuit
Type MS132-KB with Push-in Spring terminals
Connecting capacity
Rigid solid 1 or 2 x 1 ... 2.5 mm²
Rigid stranded 1 or 2 x 1 ... 6 mm²
Flexible with ferrule 1 or 2 x 0.5 ... 4 mm²
Flexible with insulated ferrule 1 x 0.5 ... 4 mm²
1/2 x 0.5 ... 2.5 mm²
Flexible 1 or 2 x 0.75 ... 4 mm²
Stranded acc. to UL/CSA 1/2 x AWG 18 ... AWG 10
1 x AWG 8
Wire stripping length 12 mm
Screwdriver Flat Ø 3 mm x 0.5 mm
Main circuit
Type MS165-B
Connecting capacity
Rigid 1 or 2 x 1 ... 50 mm²
Flexible with ferrule 1 or 2 x 1 ... 35 mm²
Flexible with insulated ferrule 1 or 2 x 1 ... 35 mm²
Flexible 1 or 2 x 1 ... 35 mm²
Stranded acc. to UL/CSA 1 or 2 x AWG 16-0
Stripping length 16 mm
Tightening torque 4.0 Nm / 35 Ib.in
Recommended screw driver Pozidriv 2
Main circuit
Type MO132-B ≤ 10 A MO132-B ≥ 12 A
Connecting capacity
Rigid 1 or 2 x 1 ... 4 mm² 1 ... 2.5 mm²
2.5 ... 6 mm²
Flexible with ferrule 1 or 2 x 0.75 ... 2.5 mm² 0.75 ... 6 mm²
Flexible with insulated ferrule 1 or 2 x 0.75 ... 2.5 mm² 0.75 ... 6 mm²
Flexible 1 or 2 x 0.75 ... 2.5 mm² 1 ... 2.5 mm²
2.5 ... 6 mm²
Stranded acc. to UL/CSA 1 or 2 x AWG 16-12 AWG 16-8
Stripping length 9 mm 10 mm
Tightening torque 0.8 ... 1.2 Nm / 10 … 12 Ib.in 2.0 Nm / 18 Ib.in
Recommended screw driver Pozidriv 2 Pozidriv 2
Main circuit
Type MO165-B
Connecting capacity
Rigid 1 or 2 x 1 ... 50 mm²
Flexible with ferrule 1 or 2 x 1 ... 35 mm²
Flexible with insulated ferrule 1 or 2 x 1 ... 35 mm²
Flexible 1 or 2 x 1 ... 35 mm²
Stranded acc. to UL/CSA 1 or 2 x AWG 16-0
2CDC131100C0201 - Rev. A
Stripping length 16 mm
Tightening torque 4.0 Nm / 35 Ib.in
Recommended screw driver Pozidriv 2
