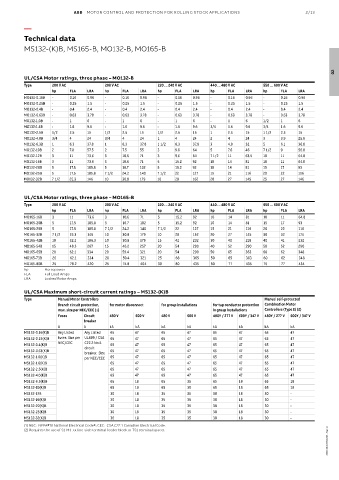

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 2/13

—
Technical data

MS132-(K)B, MS165-B, MO132-B, MO165-B

02
UL/CSA Motor ratings, three phase – MO132-B
Type 200 V AC 208 V AC 220 … 240 V AC 440 … 480 V AC 550 … 600 V AC
hp FLA LRA hp FLA LRA hp FLA LRA hp FLA LRA hp FLA LRA
MO132-0.16B - 0.16 0.96 - 0.16 0.96 - 0.16 0.96 - 0.16 0.96 - 0.16 0.96
MO132-0.25B - 0.25 1.5 - 0.25 1.5 - 0.25 1.5 - 0.25 1.5 - 0.25 1.5
MO132-0.4B - 0.4 2.4 - 0.4 2.4 - 0.4 2.4 - 0.4 2.4 - 0.4 2.4
MO132-0.63B - 0.63 3.78 - 0.63 3.78 - 0.63 3.78 - 0.63 3.78 - 0.63 3.78
MO132-1.0B - 1 6 - 1 6 - 1 6 - 1 6 1/2 1 6
MO132-1.6B - 1.6 9.6 - 1.6 9.6 - 1.6 9.6 3/4 1.6 9.6 3/4 1.6 9.6
MO132-2.5B 1/2 2.5 15 1/2 2.5 15 1/2 2.5 15 1 2.5 15 1 1/2 2.5 15
MO132-4.0B 3/4 4 24 3/4 4 24 1 4 24 2 4 24 3 3.9 25.6
MO132-6.3B 1 6.3 37.8 1 6.3 37.8 1 1/2 6.3 37.8 3 4.8 32 5 6.1 36.8
MO132-10B 2 7.8 57.5 2 7.5 55 3 9.6 64 5 7.6 46 7 1/2 9 50.8
MO132-12B 3 11 73.6 3 10.6 71 3 9.6 64 7 1/2 11 63.5 10 11 64.8
MO132-16B 3 11 73.6 3 10.6 71 5 15.2 92 10 14 81 10 11 64.8
MO132-20B 5 17.5 105.8 5 16.7 102 5 15.2 92 10 14 81 15 17 93
MO132-25B 5 17.5 105.8 7 1/2 24.2 140 7 1/2 22 127 15 21 116 20 22 116
MO132-32B 7 1/2 25.3 146 10 30.8 179 10 28 162 20 27 145 25 27 146

UL/CSA Motor ratings, three phase – MO165-B
Type 200 V AC 208 V AC 220 … 240 V AC 440 … 480 V AC 550 … 600 V AC
hp FLA LRA hp FLA LRA hp FLA LRA hp FLA LRA hp FLA LRA
MO165-16B 3 11 73.6 3 10.6 71 5 15.2 92 10 14 81 10 11 64.8
MO165-20B 5 17.5 105.8 5 16.7 102 5 15.2 92 10 14 81 15 17 93
MO165-25B 5 17.5 105.8 7 1/2 24.2 140 7 1/2 22 127 15 21 116 20 22 116
MO165-32B 7 1/2 25.3 146 10 30.8 179 10 28 162 20 27 145 30 32 174
MO165-42B 10 32.2 186.3 10 30.8 179 15 42 232 30 40 218 40 41 232
MO165-54B 15 48.3 267 15 46.2 257 20 54 290 40 52 290 50 52 290
MO165-65B 20 62.1 334 20 59.4 321 20 54 290 50 65 363 60 62 348
MO165-73B 20 62.1 334 20 59.4 321 25 68 365 50 65 363 60 62 348
MO165-80B 25 78.2 420 25 74.8 404 30 80 435 60 77 435 75 77 434
hp Horsepower
FLA Full Load Amps
LRA Locked Rotor Amps
UL/CSA Maximum short-circuit current ratings – MS132-(K)B
Type Manual Motor Controllers Manual self-protected
Branch circuit protection, for motor disconnect for group installations for tap conductor protection Combination Motor
max. size per NEC/CEC (1) in group installations Controllers (Type E) (2)
Fuses Circuit 480 V 600 V 480 V 600 V 480Y / 277 V 600Y / 347 V 480Y / 277 V 600Y / 347 V
breaker
A A kA kA kA kA kA kA kA kA
MS132-0.16(K)B Any Listed Any Listed 65 47 65 47 65 47 65 47
MS132-0.25(K)B fuses. Size per UL489 / CSA 65 47 65 47 65 47 65 47
MS132-0.4(K)B NEC/CEC C22.2 No.5 65 47 65 47 65 47 65 47
circuit
MS132-0.63(K)B breaker. Size 65 47 65 47 65 47 65 47
MS132-1.0(K)B per NEC/CEC 65 47 65 47 65 47 65 47
MS132-1.6(K)B 65 47 65 47 65 47 65 47
MS132-2.5(K)B 65 47 65 47 65 47 65 47
MS132-4.0(K)B 65 47 65 47 65 47 65 47
MS132-6.3(K)B 65 18 65 35 65 18 65 18
MS132-10(K)B 65 18 65 35 65 18 65 18
MS132-12B 30 18 35 35 30 18 30 -
MS132-16(K)B 30 18 35 35 30 18 30 -
MS132-20(K)B 30 18 35 35 30 18 30 -
MS132-25(K)B 30 18 35 35 30 18 30 -
MS132-32(K)B 30 18 35 35 30 18 30 -
(1) NEC: NFPA®70 National Electrical Code®; CEC: CSA C22.1 Canadian Electrical Code.
2CDC131100C0201 - Rev. A
(2) Requires the use of S1-M3-xx line-side terminal feeder block or TS1 terminal spacer.
