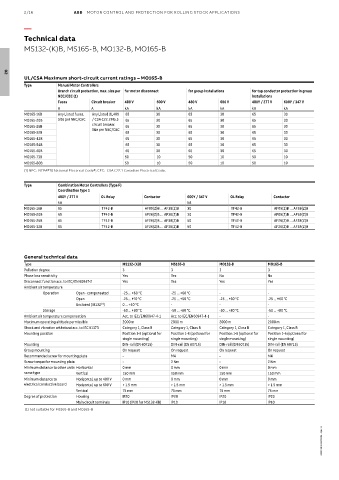

2/16 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—
Technical data

MS132-(K)B, MS165-B, MO132-B, MO165-B

UL/CSA Maximum short-circuit current ratings – MO165-B
02
Type Manual Motor Controllers
Branch circuit protection, max. size per for motor disconnect for group installations for tap conductor protection in group
NEC/CEC (1) installations
Fuses Circuit breaker 480 V 600 V 480 V 600 V 480Y / 277 V 600Y / 347 V
A A kA kA kA kA kA kA
MO165-16B Any Listed fuses. Any Listed UL489 65 30 65 30 65 30
MO165-20B Size per NEC/CEC / CSA C22.2 No.5 65 30 65 30 65 30
MO165-25B circuit breaker. 65 30 65 30 65 30
Size per NEC/CEC
MO165-32B 65 30 65 30 65 30
MO165-42B 65 30 65 30 65 30
MO165-54B 65 30 65 30 65 30
MO165-65B 65 30 65 30 65 30
MO165-73B 50 10 50 10 50 10
MO165-80B 50 10 50 10 50 10
(1) NEC: NFPA®70 National Electrical Code®; CEC: CSA C22.1 Canadian Electrical Code.

Type Combination Motor Controllers (Type F)
Coordination type 1
480Y / 277 V OL Relay Contactor 600Y / 347 V OL Relay Contactor
kA kA
MO165-16B 65 TF42-B AF09(Z)B … AF38(Z)B 30 TF42-B AF09(Z)B … AF38(Z)B
MO165-20B 65 TF42-B AF26(Z)B … AF38(Z)B 30 TF42-B AF09(Z)B … AF38(Z)B
MO165-25B 65 TF42-B AF26(Z)B … AF38(Z)B 50 TF42-B AF26(Z)B … AF38(Z)B
MO165-32B 65 TF42-B AF26(Z)B … AF38(Z)B 50 TF42-B AF26(Z)B … AF38(Z)B

General technical data
Type MS132-(K)B MS165-B MO132-B MO165-B
Pollution degree 3 3 3 3
Phase loss sensitivity Yes Yes No No
Disconnect function acc. to IEC/EN 60947-2 Yes Yes Yes Yes
Ambient air temperature
Operation Open - compensated -25 ... +60 °C -25 ... +60 °C - -
Open -25 ... +70 °C -25 ... +60 °C -25 ... +60 °C -25 ... +60 °C
(1)
Enclosed (IB132 ) 0 ... +40 °C - - -
Storage -50 ... +80 °C -50 ... +80 °C -50 ... +80 °C -50 ... +80 °C
Ambient air temperature compensation Acc. to IEC/EN60947-4-1 Acc. to IEC/EN60947-4-1 - -
Maximum operating altitude permissible 2000 m 2000 m 2000 m 2000 m
Shock and vibration withstand acc. to IEC 61373 Category 1, Class B Category 1, Class B Category 1, Class B Category 1, Class B
Mounting position Position 1-6 (optional for Position 1-6 (optional for Position 1-6 (optional for Position 1-6 (optional for
single mounting) single mounting) single mounting) single mounting)
Mounting DIN-rail (EN 60715) DIN-rail (EN 60715) DIN-rail (EN 60715) DIN-rail (EN 60715)
Group mounting On request On request On request On request
Recommended screw for mounting plate - M4 - M4
Screw torque for mounting plate - 2 Nm - 2 Nm
Minimum distance to other units Horizontal 0 mm 0 mm 0 mm 0 mm
same type Vertical 150 mm 150 mm 150 mm 150 mm
Minimum distance to Horizontal, up to 400 V 0 mm 0 mm 0 mm 0 mm
electrical conductive board Horizontal, up to 690 V > 1.5 mm > 1.5 mm > 1.5 mm > 1.5 mm
Vertical 75 mm 75 mm 75 mm 75 mm
Degree of protection Housing IP20 IP20 IP20 IP20
Main circuit terminals IP10 (IP20 for MS132-KB) IP10 IP10 IP10
(1) not suitable for MS165-B and MO165-B
