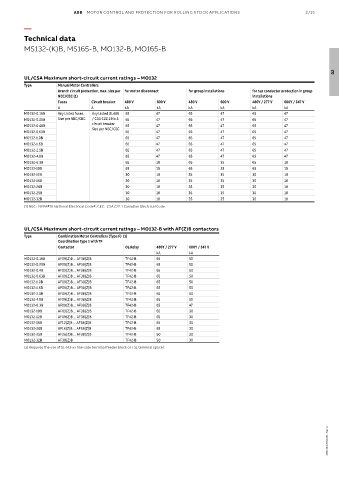

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 2/15

—
Technical data

MS132-(K)B, MS165-B, MO132-B, MO165-B

02
UL/CSA Maximum short-circuit current ratings – MO132
Type Manual Motor Controllers
Branch circuit protection, max. size per for motor disconnect for group installations for tap conductor protection in group
NEC/CEC (1) installations
Fuses Circuit breaker 480 V 600 V 480 V 600 V 480Y / 277 V 600Y / 347 V
A A kA kA kA kA kA kA
MO132-0.16B Any Listed fuses. Any Listed UL489 65 47 65 47 65 47
MO132-0.25B Size per NEC/CEC / CSA C22.2 No.5 65 47 65 47 65 47
MO132-0.40B circuit breaker. 65 47 65 47 65 47
Size per NEC/CEC
MO132-0.63B 65 47 65 47 65 47
MO132-1.0B 65 47 65 47 65 47
MO132-1.6B 65 47 65 47 65 47
MO132-2.5B 65 47 65 47 65 47
MO132-4.0B 65 47 65 47 65 47
MO132-6.3B 65 18 65 35 65 18
MO132-10B 65 18 65 35 65 18
MO132-12B 30 18 35 35 30 18
MO132-16B 30 18 35 35 30 18
MO132-20B 30 18 35 35 30 18
MO132-25B 30 18 35 35 30 18
MO132-32B 30 18 35 35 30 18
(1) NEC: NFPA®70 National Electrical Code®; CEC: CSA C22.1 Canadian Electrical Code.

UL/CSA Maximum short-circuit current ratings – MO132-B with AF(Z)B contactors
Type Combination Motor Controllers (Type F) (1)
Coordination type 1 with TF
Contactor OL Relay 480Y / 277 V 600Y / 347 V
kA kA
MO132-0.16B AF09(Z)B ... AF38(Z)B TF42-B 65 50
MO132-0.25B AF09(Z)B ... AF38(Z)B TF42-B 65 50
MO132-0.4B AF09(Z)B ... AF38(Z)B TF42-B 65 50
MO132-0.63B AF09(Z)B ... AF38(Z)B TF42-B 65 50
MO132-1.0B AF09(Z)B ... AF38(Z)B TF42-B 65 50
MO132-1.6B AF09(Z)B ... AF38(Z)B TF42-B 65 50
MO132-2.5B AF09(Z)B ... AF38(Z)B TF42-B 65 50
MO132-4.0B AF09(Z)B ... AF38(Z)B TF42-B 65 50
MO132-6.3B AF09(Z)B ... AF38(Z)B TF42-B 65 47
MO132-10B AF09(Z)B ... AF38(Z)B TF42-B 65 30
MO132-12B AF09(Z)B ... AF38(Z)B TF42-B 65 30
MO132-16B AF12(Z)B ... AF38(Z)B TF42-B 65 30
MO132-20B AF16(Z)B ... AF38(Z)B TF42-B 65 30
MO132-25B AF26(Z)B ... AF38(Z)B TF42-B 50 30
MO132-32B AF38(Z)B TF42-B 50 30
(1) Requires the use of S1-M3-xx line-side terminal feeder block or TS1 terminal spacer.
