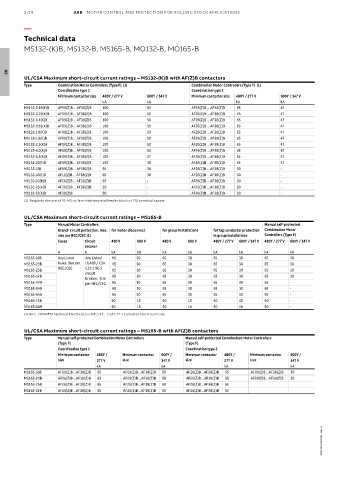

2/14 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—
Technical data

MS132-(K)B, MS132-B, MS165-B, MO132-B, MO165-B

02
UL/CSA Maximum short-circuit current ratings – MS132-(K)B with AF(Z)B contactors
Type Combination Motor Controllers (Type F) (1) Combination Motor Controllers (Type F) (1)
Coordination type 1 Coordination type 2
Minimum contactor size 480Y / 277 V 600Y / 347 V Minimum contactor size 480Y / 277 V 600Y / 347 V
kA kA kA kA
MS132-0.16(K)B AF09(Z)B ... AF38(Z)B 100 50 AF26(Z)B ... AF38(Z)B 65 47
MS132-0.25(K)B AF09(Z)B ... AF38(Z)B 100 50 AF26(Z)B ... AF38(Z)B 65 47
MS132-0.4(K)B AF09(Z)B ... AF38(Z)B 100 50 AF26(Z)B ... AF38(Z)B 65 47
MS132-0.63(K)B AF09(Z)B ... AF38(Z)B 100 50 AF26(Z)B ... AF38(Z)B 65 47
MS132-1.0(K)B AF09(Z)B ... AF38(Z)B 100 50 AF26(Z)B ... AF38(Z)B 65 47
MS132-1.6(K)B AF09(Z)B ... AF38(Z)B 100 50 AF26(Z)B ... AF38(Z)B 65 47
MS132-2.5(K)B AF09(Z)B ... AF38(Z)B 100 50 AF26(Z)B ... AF38(Z)B 65 47
MS132-4.0(K)B AF09(Z)B ... AF38(Z)B 100 50 AF26(Z)B ... AF38(Z)B 65 47
MS132-6.3(K)B AF09(Z)B ... AF38(Z)B 100 47 AF26(Z)B ... AF38(Z)B 65 47
MS132-10(K)B AF09(Z)B ... AF38(Z)B 100 30 AF26(Z)B ... AF38(Z)B 65 47
MS132-12B AF09(Z)B ... AF38(Z)B 65 30 AF26(Z)B ... AF38(Z)B 30 -
MS132-16(K)B AF12(Z)B ... AF38(Z)B 65 30 AF26(Z)B ... AF38(Z)B 30 -
MS132-20(K)B AF26(Z)B ... AF38(Z)B 65 - AF26(Z)B ... AF38(Z)B 30 -
MS132-25(K)B AF26(Z)B ... AF38(Z)B 50 - AF26(Z)B ... AF38(Z)B 30 -
MS132-32(K)B AF38(Z)B 50 - AF26(Z)B ... AF38(Z)B 30 -
(1) Requires the use of S1-M3-xx line-side terminal feeder block or TS1 terminal spacer.

UL/CSA Maximum short-circuit current ratings – MS165-B
Type Manual Motor Controllers Manual self-protected
Branch circuit protection, max. for motor disconnect for group installations for tap conductor protection Combination Motor
size per NEC/CEC (1) in group installations Controllers (Type E)
Fuses Circuit 480 V 600 V 480 V 600 V 480Y / 277 V 600Y / 347 V 480Y / 277 V 600Y / 347 V
breaker
A A kA kA kA kA kA kA kA kA
MS165-16B Any Listed Any Listed 65 30 65 30 65 30 65 30
MS165-20B fuses. Size per UL489 / CSA 65 30 65 30 65 30 65 30
MS165-25B NEC/CEC C22.2 No.5 65 30 65 30 65 30 65 30
circuit
MS165-32B breaker. Size 65 30 65 30 65 30 65 30
MS165-42B per NEC/CEC 65 30 65 30 65 30 65 -
MS165-54B 65 30 65 30 65 30 65 -
MS165-65B 65 30 65 30 65 30 65 -
MS165-73B 50 10 50 10 50 10 50 -
MS165-80B 50 10 50 10 50 10 50 -
(1) NEC: NFPA®70 National Electrical Code®; CEC: CSA C22.1 Canadian Electrical Code.

UL/CSA Maximum short-circuit current ratings – MS165-B with AF(Z)B contactors
Type Manual self-protected Combination Motor Controllers Manual self-protected Combination Motor Controllers
(Type F) (Type F)
Coordination type 1 Coordination type 2
Minimum contactor 480Y / Minimum contactor 600Y / Minimum contactor 480Y / Minimum contactor 600Y /
size 277 V size 347 V size 277 V size 347 V
kA kA kA kA
MS165-16B AF09(Z)B…AF38(Z)B 65 AF09(Z)B…AF38(Z)B 50 AF26(Z)B…AF38(Z)B 65 AF09(Z)B…AF38(Z)B 30
MS165-20B AF26(Z)B…AF38(Z)B 65 AF26(Z)B…AF38(Z)B 50 AF26(Z)B…AF38(Z)B 65 AF09(Z)B…AF38(Z)B 30
MS165-25B AF26(Z)B…AF38(Z)B 65 AF26(Z)B…AF38(Z)B 50 AF26(Z)B…AF38(Z)B 65
MS165-32B AF26(Z)B…AF38(Z)B 65 AF26(Z)B…AF38(Z)B 50 AF26(Z)B…AF38(Z)B 65

2CDC131100C0201 - Rev. A
