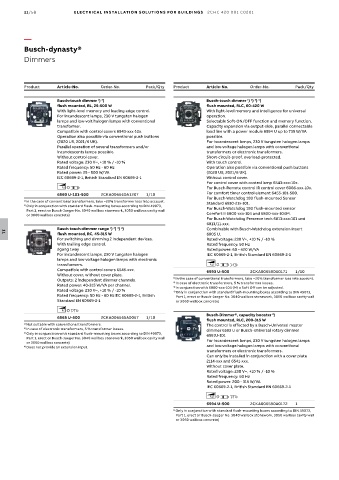

Page 1164 - Din prodcuts 2020

11/58 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Busch-dynasty®
Dimmers

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

2
3
Busch-touch dimmer ) ) 2 Busch-touch dimmer ) ) ) )
1
1
4
flush mounted, RL, 25-500 W flush mounted, RLC, 60-420 W
With light-level memory and leading edge control. With light-level memory and intelligence for universal
For incandescent lamps, 230 V tungsten halogen operation.
lamps and low-volt halogen lamps with conventional Selectable Soft-ON/OFF function and memory function.
transformer. Capacity expansion via output-side, parallel connectable
Compatible with control covers 6543-xxx-10x. load line with a power module 6594 U up to 735 W/VA
Operation also possible via conventional push buttons possible.
(2020 US, 2021/6 UK). For incandescent lamps, 230 V tungsten halogen lamps
Parallel operation of several transformers and/or and low-voltage halogen lamps with conventional
incandescents lamps possible. transformers or electronic transformers.
Without control cover. Short-circuit-proof, overload-protected.
Rated voltage: 230 V~, +10 % / -10 % With touch control.
Rated frequency: 50 Hz - 60 Hz Operation also possible via conventional push buttons
Rated power: 25 - 500 W/VA (2020 US, 2021/6 UK).
IEC 60669-2-1, British Standard EN 60669-2-1 Without control cover.
For control cover with control lamp 6543-xxx-10x.
For Busch-Remote control IR control cover 6066-xxx-10x.
6560 U-101-500 2CKA006560A1207 1/10 For comfort timer control element 6455-101-500.
For Busch-Watchdog 180 flush-mounted Sensor
1) In the case of conventional transformers, take ~20% transformer loss into account.
2) Only in conjunction with standard flush-mounting boxes according to DIN 49073, Standard 6810-21x-101.
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall For Busch-Watchdog 180 flush-mounted sensor
or 3060 wallbox concrete) Comfort II 6800-xxx-104 and 6800-xxx-104M.
For Busch-Watchdog Presence tech 6813-xxx-101 und
6813/11-xxx.
3
4
2
Busch touch-dimmer range ) ) ) ) Combinable with Busch-Watchdog extension insert
1
flush mounted, RC, 45-315 W 6805 U.
11
For switching and dimming 2 independent devices. Rated voltage: 230 V~, +10 % / -10 %
With trailing edge control. Rated frequency: 50 Hz
2gang 1way Rated power: 60 - 420 W/VA
For incandescent lamps, 230 V tungsten halogen IEC 60669-2-1, British Standard EN 60669-2-1
lamps and low-voltage halogen lamps with electronic
transformers.
Compatible with control covers 6545-xxx. 6593 U-500 2CKA006590A0171 1/10
Without cover, without cover plate.
1) In the case of conventional transformers, take ~20% transformer loss into account.
Outputs: 2 independent dimmer channels.
2) In case of electronic transformers, 5 % transformer losses.
Rated power: 40-315 W/VA per channel.
3) In conjunction with 6800-xxx-104 (M) a Soft Off can be adjusted.
Rated voltage: 230 V~, +10 % / -10 % 4) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Rated frequency: 50 Hz - 60 HzIEC 60669-2-1, British Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
Standard EN 60669-2-1 or 3060 wallbox concrete)
1
6565 U-500 2CKA006565A0057 1/10 Busch-Dimmer®, capacity booster )
flush mounted, RLC, 200-315 W
1) Not suitable with conventional transformers. The control is effected by a Busch-Universal master
2) In case of electronic transformers, 5 % transformer losses. dimmer 6593 U or Busch-Universal rotary dimmer
3) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall 6591U-101
or 3060 wallbox concrete) For incandescent lamps, 230 V tungsten halogen lamps
4) Does not provide an extension input. and low-voltage halogen lamps with conventional
transformers or electronic transformers.
Can only be installed in conjunction with a cover plate
2114-xxx and 6541-xxx.
Without cover plate.
Rated voltage: 230 V~, +10 % / -10 %
Rated frequency: 50 Hz
Rated power: 200 - 315 W/VA
IEC 60669-2-1, British Standard EN 60669-2-1

6594 U-500 2CKA006590A0172 1
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
or 3060 wallbox concrete)
