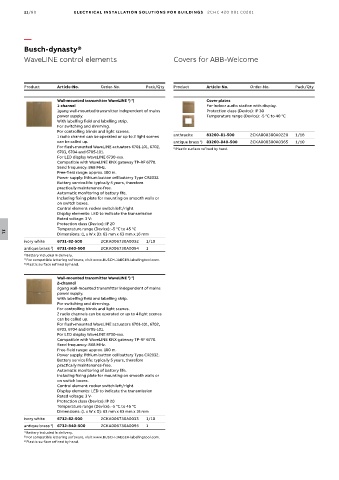

11/80 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Busch-dynasty®
WaveLINE control elements Covers for ABB-Welcome

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

1
Wall-mounted transmitter WaveLINE ) ) Cover plates
2
1-channel For indoor audio station with display.
1gang wall-mounted transmitter independent of mains Protection class (Device): IP 30
power supply. Temperature range (Device): -5 °C to 40 °C
With labelling field and labelling strip.
For switching and dimming.
For controlling blinds and light scenes.
1 radio channel can be operated or up to 2 light scenes anthracite 83260-81-500 2CKA008300A0220 1/18
can be called up. antique brass ) 83260-840-500 2CKA008300A0365 1/10
1
For flush-mounted WaveLINE actuators 6701-101, 6702, 1) Plastic surface refined by hand.
6703, 6704 and 6705-101.
For LED display WaveLINE 6730-xxx.
Compatible with WaveLINE KNX gateway TP-RF 6770.
Send frequency: 868 MHz.
Free-field range: approx. 100 m.
Power supply: lithium button cell battery Type CR2032.
Battery service life: typically 5 years, therefore
practically maintenance-free.
Automatic monitoring of battery life.
Including fixing plate for mounting on smooth walls or
on switch boxes.
Control element: rocker switch left/right
Display elements: LED to indicate the transmission
Rated voltage: 3 V-
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 63 mm x 63 mm x 16 mm
11
ivory white 6731-82-500 2CKA006730A0032 1/10
antique brass ) 6731-840-500 2CKA006730A0094 1
3
1) Battery included in delivery.
2) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
3) Plastic surface refined by hand.
Wall-mounted transmitter WaveLINE ) )
1
2
2-channel
2gang wall-mounted transmitter independent of mains
power supply.
With labelling field and labelling strip.
For switching and dimming.
For controlling blinds and light scenes.
2 radio channels can be operated or up to 4 light scenes
can be called up.
For flush-mounted WaveLINE actuators 6701-101, 6702,
6703, 6704 and 6705-101.
For LED display WaveLINE 6730-xxx.
Compatible with WaveLINE KNX gateway TP-RF 6770.
Send frequency: 868 MHz.
Free-field range: approx. 100 m.
Power supply: lithium button cell battery Type CR2032.
Battery service life: typically 5 years, therefore
practically maintenance-free.
Automatic monitoring of battery life.
Including fixing plate for mounting on smooth walls or
on switch boxes.
Control element: rocker switch left/right
Display elements: LED to indicate the transmission
Rated voltage: 3 V-
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 63 mm x 63 mm x 16 mm
ivory white 6732-82-500 2CKA006730A0033 1/10
antique brass ) 6732-840-500 2CKA006730A0095 1
3
1) Battery included in delivery.
2) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
3) Plastic surface refined by hand.
