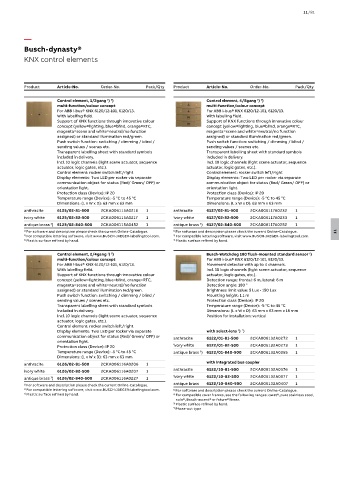

Busch-dynasty®
KNX control elements

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

1
Control element, 1/2gang ) ) Control element, 4/8gang ) )
2
2
1
multi-function/colour concept multi-function/colour concept
For ABB i-bus® KNX 6120/12-101, 6120/13. For ABB i-bus® KNX 6120/12-101, 6120/13.
With labelling field. With labelling field.
Support of KNX functions through innovative colour Support of KNX functions through innovative colour
concept (yellow=lighting, blue=blind, orange=RTC, concept (yellow=lighting, blue=blind, orange=RTC,
magenta=scene and white=neutral/no function magenta=scene and white=neutral/no function
assigned) or standard illumination red/green. assigned) or standard illumination red/green.
Push switch function: switching / dimming / blind / Push switch function: switching / dimming / blind /
sending values / scenes etc. sending values / scenes etc.
Transparent labelling sheet with standard symbols Transparent labelling sheet with standard symbols
included in delivery. included in delivery.
Incl. 10 logic channels (light scene actuator, sequence Incl. 10 logic channels (light scene actuator, sequence
actuator, logic gates, etc.). actuator, logic gates, etc.).
Control element: rocker switch left/right Control element: rocker switch left/right
Display elements: Two LED per rocker via separate Display elements: Two LED per rocker via separate
communication object for status (Red/ Green/ OFF) or communication object for status (Red/ Green/ OFF) or
orientation light. orientation light.
Protection class (Device): IP 20 Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 63 mm x 63 mm Dimensions: (L x W x D): 63 mm x 63 mm
anthracite 6125/02-81-500 2CKA006115A0216 1 anthracite 6127/02-81-500 2CKA006117A0232 1
ivory white 6125/02-82-500 2CKA006115A0217 1 ivory white 6127/02-82-500 2CKA006117A0233 1
antique brass ) 6125/02-840-500 2CKA006115A0452 1 antique brass ) 6127/02-840-500 2CKA006117A0252 1
3
3
1) For software and description please check the current Online-Catalogue. 1) For software and description please check the current Online-Catalogue. 11
2) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com. 2) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
3) Plastic surface refined by hand. 3) Plastic surface refined by hand.
Control element, 2/4gang ) ) Busch-Watchdog 180 flush-mounted standard sensor )
1
2
1
multi-function/colour concept For ABB i-bus® KNX 6120/12-101, 6120/13.
For ABB i-bus® KNX 6120/12-101, 6120/13. Movement detector with up to 4 channels.
With labelling field. Incl. 10 logic channels (light scene actuator, sequence
Support of KNX functions through innovative colour actuator, logic gates, etc.).
concept (yellow=lighting, blue=blind, orange=RTC, Detection range: frontal: 6 m, lateral: 6 m
magenta=scene and white=neutral/no function Detection angle: 180 °
assigned) or standard illumination red/green. Brightness limit value: 5 Lux - 150 Lux
Push switch function: switching / dimming / blind / Mounting height: 1.1 m
sending values / scenes etc. Protection class (Device): IP 20
Transparent labelling sheet with standard symbols Temperature range (Device): -5 °C to 45 °C
included in delivery. Dimensions: (L x W x D): 63 mm x 63 mm x 18 mm
Incl. 10 logic channels (light scene actuator, sequence Position for installation: vertical
actuator, logic gates, etc.).
Control element: rocker switch left/right
*
Display elements: Two LED per rocker via separate with select-lens ) )
2
communication object for status (Red/ Green/ OFF) or anthracite 6122/01-81-500 2CKA006132A0272 1
orientation light.
Protection class (Device): IP 20 ivory white 6122/01-82-500 2CKA006132A0273 1
Temperature range (Device): -5 °C to 45 °C antique brass ) 6122/01-840-500 2CKA006132A0355 1
3
Dimensions: (L x W x D): 63 mm x 63 mm
anthracite 6126/02-81-500 2CKA006116A0206 1 with integrated bus coupler
anthracite 6122/10-81-500 2CKA006132A0376 1
ivory white 6126/02-82-500 2CKA006116A0207 1
antique brass ) 6126/02-840-500 2CKA006116A0227 1 ivory white 6122/10-82-500 2CKA006132A0377 1
3
antique brass 6122/10-840-500 2CKA006132A0407 1
1) For software and description please check the current Online-Catalogue.
2) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com. 1) For software and description please check the current Online-Catalogue.
3) Plastic surface refined by hand. 2) For compatible cover frames, see the following ranges: carat®, pure stainless steel,
solo®, Busch-axcent® or future® linear.
3) Plastic surface refined by hand.
*) Phase-out type
