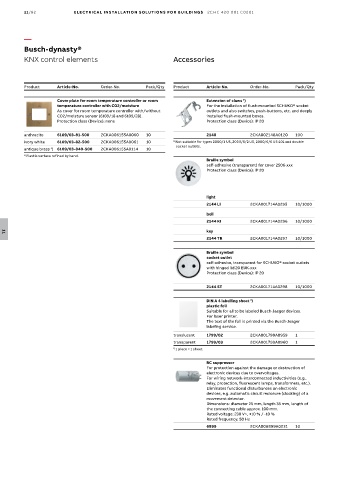

Page 1188 - Din prodcuts 2020

11/82 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Busch-dynasty®
KNX control elements Accessories

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Cover plate for room temperature controller or room Extension of claws )
1
temperature controller with CO2/moisture For the installation of flush-mounted SCHUKO® socket
As cover for room temperature controller with/without outlets and also switches, push-buttons, etc. and deeply
CO2/moisture sensor (6109/18 and 6109/28). installed flush-mounted boxes.
Protection class (Device): none Protection class (Device): IP 20
anthracite 6109/03-81-500 2CKA006155A0060 10 2148 2CKA002148A0120 100
ivory white 6109/03-82-500 2CKA006155A0061 10 1) Not suitable for types 2000/3 US, 2000/6/2 US, 2000/6/6 US-101 and double
socket outlets.
antique brass ) 6109/03-840-500 2CKA006155A0114 10
1
1) Plastic surface refined by hand.
Braille symbol
self-adhesive (transparent) for cover 2506-xxx
Protection class (Device): IP 20

light
2144 LI 2CKA001714A0295 10/1000
bell
2144 KI 2CKA001714A0296 10/1000
key
11
2144 TR 2CKA001714A0297 10/1000

Braille symbol
socket outlet
self-adhesive, transparent for SCHUKO® socket outlets
with hinged lid 20 EUK-xxx
Protection class (Device): IP 20

2144 ST 2CKA001714A0298 10/1000

DIN A 4 labelling sheet )
1
plastic foil
Suitable for all to be labeled Busch-Jaeger devices.
For laser printer.
The text of the foil is printed via the Busch-Jeager
labeling service.
translucent 1799/02 2CKA001799A0959 1
transparent 1799/03 2CKA001799A0960 1
1) 1 piece = 1 sheet.

RC suppressor
For protection against the damage or destruction of
electronic devices due to overvoltages.
For wiring network-interconnected inductivities (e.g..
relay, protection, fluorescent lamps, transformers, etc.).
Eliminates functional disturbances on electronic
devices, e.g. automatic circuit reclosure (clocking) of a
movement detector.
Dimensions: diameter 25 mm, length 35 mm, length of
the connecting cable approx. 100 mm.
Rated voltage: 230 V~, +10 % / -10 %
Rated frequency: 50 Hz
6899 2CKA006899A0231 10
