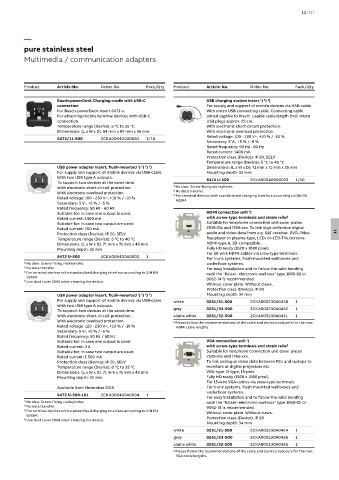

Page 1223 - Din prodcuts 2020

11/117

—
pure stainless steel
Multimedia / communication adapters

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

3
2
Busch-powerDock Charging cradle with USB-C USB charging station insert ) ) )
1
connection For supply and support of mobile devices via USB-cable.
For Busch-powerDock insert 6473 U. With micro USB connecting cable. Connecting cable
For attaching mobile terminal devices with USB-C joined captive to insert. Usable cable length (incl. micro
connection. USB plug) approx. 22 cm.
Temperature range (Device): 5 °C to 35 °C With electronic short-circuit protection.
Dimensions: (L x W x D): 54 mm x 54 mm x 36 mm With electronic overload protection.
Rated voltage: 100 - 230 V~, +10 % / -10 %
6473/11-500 2CKA006400A0083 1/10
Secondary: 5 V-, +5 % / -5 %
Rated frequency: 50 Hz - 60 Hz
Rated current: 1400 mA
Protection class (Device): IP 20, SELV
Temperature range (Device): 5 °C to 40 °C
4
1
3
2
USB power adapter insert, flush-mounted ) ) ) ) Dimensions: (L x W x D): 71 mm x 71 mm x 35 mm
For supply and support of mobile devices via USB-cable. Mounting depth: 32 mm
With two USB type A outputs. 6474 U-500 2CKA006400A0033 1/10
To support two devices at the same time.
With electronic short-circuit protection. 1) No claw. Screw-fixing via keyholes.
2) No data transfer.
With electronic overload protection. 3) For terminal devices with standardized charging interface according to DIN EN
Rated voltage: 100 - 230 V~, +10 % / -10 % 62684.
Secondary: 5 V-, +5 % / -5 %
Rated frequency: 50 Hz - 60 Hz
1
Suitable for: In case one output is used: HDMI connection unit )
Rated current: 1400 mA with screw-type terminals and strain relief
Suitable for: In case two output are used: Suitable for telephone connection unit cover plates
Rated current: 700 mA 2539-21x and 1766-xxx. To link high-definition digital
Protection class (Device): IP 20, SELV audio and video data from e.g. SAT-receiver, DVD-/Blue- 11
Temperature range (Device): 5 °C to 40 °C Ray-player to plasma-type, LCD- or-LED-TVs/screens.
Dimensions: (L x W x D): 71 mm x 71 mm x 43 mm HDMI-type A, 3D-compatible.
Mounting depth: 32 mm Fully HD ready (1920 x 1080 pixel).
For 20-wire HDMI-cables via srew-type terminals.
6472 U-500 2CKA006400A0002 1
For trunk systems, flush-mounted wall boxes and
1) No claw. Screw-fixing via keyholes. underfloor systems.
2) No data transfer. For easy installation and to follow the valid bending
3) For terminal devices with standardized charging interface according to DIN EN radii the "Kaiser- electronic-wall-box" type 1068-02 or
62684.
4) Use dust cover 2098 when cleaning the device. 9062-74 is recommended.
Without cover plate. Without claws.
Protection class (Device): IP 20
USB power adapter insert, flush-mounted ) ) ) ) Mounting depth: 34 mm
3
1
2
4
For supply and support of mobile devices via USB-cable. white 0261/31-500 2CKA000230A0430 1
With two USB type A outputs.
To support two devices at the same time. grey 0261/33-500 2CKA000230A0432 1
With electronic short-circuit protection. alpine white 0261/32-500 2CKA000230A0431 1
With electronic overload protection. 1) Please follow the recommendations of the cable and device producers for the max.
Rated voltage: 120 - 230 V~, +10 % / -10 % HDMI cable lengths.
Secondary: 5 V-, +5 % / -5 %
Rated frequency: 50 Hz / 60 Hz
1
Suitable for: In case one output is used: VGA connection unit )
Rated current: 3 A with screw-type terminals and strain relief
Suitable for: In case two output are used: Suitable for telephone connection unit cover plates
Rated current: 1.500 mA 2539-21x and 1766-xxx.
Protection class (Device): IP 20, SELV To link analogue video data between PCs and laptops to
Temperature range (Device): 0 °C to 35 °C monitors or digital projectors etc.
Dimensions: (L x W x D): 71 mm x 71 mm x 43 mm VGA-type: D-type, 15-pole.
Mounting depth: 32 mm Fully HD ready (1920 x 1080 pixel).
For 15-wire VGA-cables via srew-type terminals.
Available from November 2019 For trunk systems, flush-mounted wall boxes and
underfloor systems.
6472 U-500-101 2CKA006400A0094 1
For easy installation and to follow the valid bending
1) No claw. Screw-fixing via keyholes. radii the "Kaiser- electronic-wall-box" type 1068-02 or
2) No data transfer. 9062-74 is recommended.
3) For terminal devices with standardized charging interface according to DIN EN Without cover plate. Without claws.
62684.
4) Use dust cover 2098 when cleaning the device. Protection class (Device): IP 20
Mounting depth: 34 mm
white 0261/21-500 2CKA000230A0424 1
grey 0261/23-500 2CKA000230A0426 1
alpine white 0261/22-500 2CKA000230A0425 1
1) Please follow the recommendations of the cable and device producers for the max.
VGA cable lengths.
