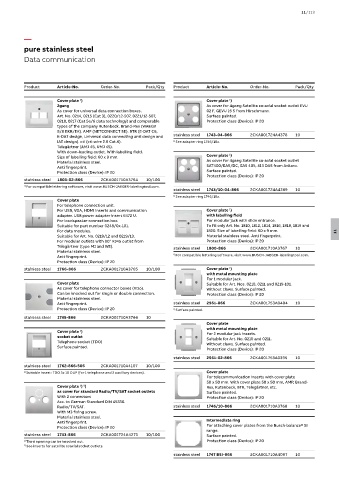

Page 1219 - Din prodcuts 2020

11/113

—
pure stainless steel
Data communication

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

1
Cover plate ) 1 Cover plate )
2gang As cover for 4gang Satellite co-axial socket outlet EVU
As cover for universal data connection boxes. 02 F, GEVU 15 S from Hirschmann.
Art. No. 0214, 0215 (Cat 3), 0220/12-507, 0221/12-507, Surface painted.
0218, 0217 (Cat 5e/6 data technology) and comparable Protection class (Device): IP 20
types of the company Rutenbeck. Brand-Rex (WAEGV
8/8 EKR/EK). AMP (NETCONNECT 5E). BTR (E-DAT C6,
E-DAT design, Universal data connecting unit design and stainless steel 1743-04-866 2CKA001724A4378 10
IAE design). cti (cti-wire 2.8 Cat.6). 1) See adapter ring 1746/10x.
Telegärtner (AMJ 45, UMJ 45).
With down-leading outlet. With labelling field.
1
Size of labelling field: 60 x 9 mm. Cover plate )
Material stainless steel. As cover for 4gang Satellite co-axial socket outlet
Anti fingerprint. SAT400/EAS/DC, EAS 405, 413 DAS from Ankaro.
Protection class (Device): IP 20 Surface painted.
Protection class (Device): IP 20
stainless steel 1803-02-866 2CKA001710A3764 10/100
1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
stainless steel 1743/10-04-866 2CKA001724A4369 10
1) See adapter ring 1746/10x.
Cover plate
For telephone connection unit.
For USB, VGA, HDMI inserts and communication Cover plate )
1
adapter. USB power adapter insert 6472 U. with labelling field
For loudspeaker connection box. For modular jack with slide entrance.
Suitable for part number 0248/0x-101. To fit only Art. No. 1810, 1812, 1814, 1816, 1818, 1819 and
For data modules. 1820. Size of labelling field: 60 x 9 mm. 11
Suitable for Art. No. 0219/12 and 0219/13. Material stainless steel. Anti fingerprint.
For modular outlets with 90° RJ45 outlet from Protection class (Device): IP 20
Telegärtner (type MJ and WE). stainless steel 1800-866 2CKA001710A3767 10
Material stainless steel.
1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
Anti fingerprint.
Protection class (Device): IP 20
1
stainless steel 1766-866 2CKA001710A3765 10/100 Cover plate )
with metal mounting plate
For 1 modular jack.
Cover plate Suitable for Art. Nos. 0210, 0211 and 0219-101.
As cover for telephone connector boxes (VDo). Without claws. Surface painted.
Can be knocked out for single or double connection. Protection class (Device): IP 20
Material stainless steel.
Anti fingerprint. stainless steel 2561-866 2CKA001753A0404 10
Protection class (Device): IP 20 1) Surface painted.
stainless steel 1745-866 2CKA001710A3766 10
Cover plate
with metal mounting plate
Cover plate ) 1 For 2 modular jack inserts.
socket outlet Suitable for Art. No. 0210 and 0211.
Telephone socket (TDO) Without claws. Surface painted.
Surface painted.
Protection class (Device): IP 20
stainless steel 2561-02-866 2CKA001753A0395 10
stainless steel 1762-866-506 2CKA001710A4107 10/100
1) Suitable insert: TDO 3x 10 OUP (for 1 telephone and 2 auxiliary devices). Cover plate
For telecommunication inserts with cover plate
50 x 50 mm. With cover plate 50 x 50 mm, AMP, Brand-
2
1
Cover plate ) ) Rex, Rutenbeck, BTR, Telegärtner, etc.
as cover for standard Radio/TV/SAT socket outlets Surface painted.
With 2 connectors Protection class (Device): IP 20
Acc. to German Standard DIN 45330.
Radio/TV/SAT. stainless steel 1746/10-866 2CKA001710A3768 10
With M3 fixing screw.
Material stainless steel.
Anti fingerprint. Intermediate ring
Protection class (Device): IP 20 For attaching cover plates from the Busch-balance® SI
range.
stainless steel 1743-866 2CKA001724A4271 10/100 Surface painted.
1) Third opening can be knocked out. Protection class (Device): IP 20
2) See inserts for satellite coaxial socket outlets.
stainless steel 1747 BSI-866 2CKA001710A4097 10
