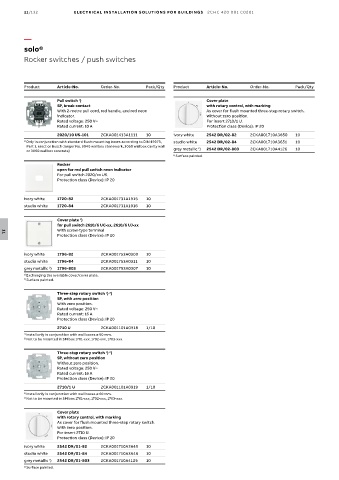

11/132 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
solo®
Rocker switches / push switches

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Pull switch ) 1 Cover plate
SP, break contact with rotary control, with marking
With 2-metre pull cord, red handle, and red neon As cover for flush mounted three-step rotary switch.
indicator. Without zero position.
Rated voltage: 250 V~ For insert 2710/1 U.
Rated current: 10 A Protection class (Device): IP 20
2020/10 US-101 2CKA001413A1111 10 ivory white 2542 DR/02-82 2CKA001710A3650 10
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073, studio white 2542 DR/02-84 2CKA001710A3651 10
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall 1
or 3060 wallbox concrete) grey metallic ) 2542 DR/02-803 2CKA001710A4126 10
1) Surface painted.
Rocker
open for red pull switch neon indicator
For pull switch 2020/xx US.
Protection class (Device): IP 20

ivory white 1720-82 2CKA001731A1915 10
studio white 1720-84 2CKA001731A1916 10

Cover plate ) 1
for pull switch 2610/6 UC-xx, 2610/6 UJ-xx
With screw-type terminal
Protection class (Device): IP 20
11

ivory white 1796-82 2CKA001753A0309 10
studio white 1796-84 2CKA001753A0311 10
grey metallic ) 1796-803 2CKA001753A0307 10
2
1) Exchanging the available cover/cover plate.
2) Surface painted.

Three-step rotary switch ) )
1
2
SP, with zero position
With zero position.
Rated voltage: 250 V~
Rated current: 16 A
Protection class (Device): IP 20
2710 U 2CKA001101A0918 1/10
1) Install only in conjunction with wall boxes ø 60 mm.
2) Not to be mounted in SM box 1701-xxx, 1702-xxx, 1703-xxx.

Three-step rotary switch ) )
2
1
SP, without zero position
Without zero position.
Rated voltage: 250 V~
Rated current: 16 A
Protection class (Device): IP 20
2710/1 U 2CKA001101A0919 1/10
1) Install only in conjunction with wall boxes ø 60 mm.
2) Not to be mounted in SM box 1701-xxx, 1702-xxx, 1703-xxx.

Cover plate
with rotary control, with marking
As cover for flush mounted three-step rotary switch.
With zero position.
For insert 2710 U.
Protection class (Device): IP 20
ivory white 2542 DR/01-82 2CKA001710A3645 10
studio white 2542 DR/01-84 2CKA001710A3646 10
grey metallic ) 2542 DR/01-803 2CKA001710A4125 10
1
1) Surface painted.
