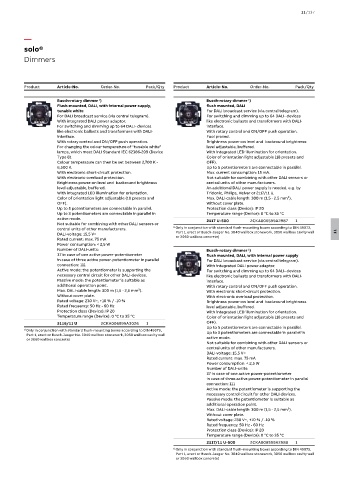

Page 1243 - Din prodcuts 2020

11/137

—
solo®
Dimmers

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Busch-rotary dimmer ) Busch-rotary dimmer )
1
1
Flush-mounted, DALI, with internal power supply, flush mounted, DALI
tunable white For DALI broadcast service (via central telegram).
For DALI broadcast service (via central telegram). For switching and dimming up to 64 DALI- devices
With integrated DALI power adaptor. like electronic ballasts and transformers with DALI-
For switching and dimming up to 64 DALI- devices interface.
like electronic ballasts and transformers with DALI- With rotary control and ON/OFF push operation.
interface. Fool proved.
With rotary control and ON/OFF push operation. Brightness power-on level and backround brightness
For changing the colour temperature of "tunable white" level adjustable, buffered.
lamps, which meet DALI Standard IEC 62386-209 (Device With integrated LED illumination for orientation.
Type 8). Color of orientation light adjustable (18 presets and
Colour temperature can then be set between 2,700 K - OFF).
6,500 K. Up to 5 potentiometers are connectable in parallel.
With electronic short-circuit protection. Max. current consumption: 15 mA.
With electronic overload protection. Not suitable for combining with other DALI sensors or
Brightness power-on level and backround brightness central units of other manufacturers.
level adjustable, buffered. An additional DALI power supply is needed, e.g. by
With integrated LED illumination for orientation. Tridonic, Philips, Helvar or 2117/11 U.
Color of orientation light adjustable (18 presets and Max. DALI-cable length: 300 m (1,5 - 2,5 mm²).
OFF). Without cover plate.
Up to 5 potentiometers are connectable in parallel. Protection class (Device): IP 20
Up to 3 potentiometers are connectable in parallel in Temperature range (Device): 0 °C to 35 °C
active mode. 2117 U-500 2CKA006599A2987 1
Not suitable for combining with other DALI sensors or
central units of other manufacturers. 1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
DALI-voltage: 15,5 V= Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall 11
or 3060 wallbox concrete)
Rated current: max. 75 mA
Power consumption: < 2,5 W
Number of DALI-units: Busch-rotary dimmer )
1
37 in case of one active power-potentiometer flush mounted, DALI, with internal power supply
in case of three active power-potentiometer in parallel For DALI broadcast service (via central telegram).
connection: 111 With integrated DALI power adaptor.
Active mode: the potentiometer is supporting the For switching and dimming up to 64 DALI- devices
necessary control circuit for other DALI-devices. like electronic ballasts and transformers with DALI-
Passive mode: the potentiometer is suitable as interface.
additional operation point. With rotary control and ON/OFF push operation.
Max. DALI-cable length: 300 m (1,5 - 2,5 mm²). With electronic short-circuit protection.
Without cover plate. With electronic overload protection.
Rated voltage: 230 V~, +10 % / -10 % Brightness power-on level and backround brightness
Rated frequency: 50 Hz - 60 Hz level adjustable, buffered.
Protection class (Device): IP 20 With integrated LED illumination for orientation.
Temperature range (Device): 0 °C to 35 °C Color of orientation light adjustable (18 presets and
2116/11 U 2CKA006599A3026 1 OFF).
Up to 5 potentiometers are connectable in parallel.
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall Up to 3 potentiometers are connectable in parallel in
or 3060 wallbox concrete) active mode.
Not suitable for combining with other DALI sensors or
central units of other manufacturers.
DALI-voltage: 15,5 V=
Rated current: max. 75 mA
Power consumption: < 2,5 W
Number of DALI-units:
37 in case of one active power-potentiometer
in case of three active power-potentiometer in parallel
connection: 111
Active mode: the potentiometer is supporting the
necessary control circuit for other DALI-devices.
Passive mode: the potentiometer is suitable as
additional operation point.
Max. DALI-cable length: 300 m (1,5 - 2,5 mm²).
Without cover plate.
Rated voltage: 230 V~, +10 % / -10 %
Rated frequency: 50 Hz - 60 Hz
Protection class (Device): IP 20
Temperature range (Device): 0 °C to 35 °C
2117/11 U-500 2CKA006599A2988 1
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
or 3060 wallbox concrete)
