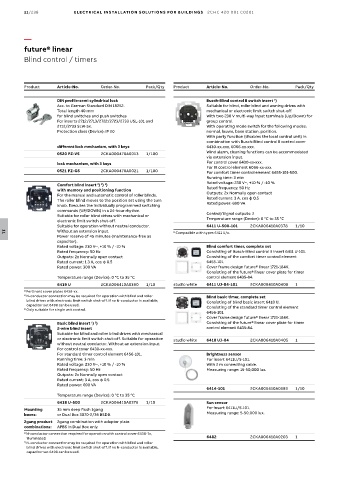

11/238 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
future® linear
Blind control / timers

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

DIN profile-semi cylindrical lock Busch-Blind control II switch insert ) 1
Acc. to German Standard DIN 18252. Suitable for blind, roller blind and awning drives with
Total length 40 mm mechanical or electronic limit switch shut-off.
for blind switches and push switches With two 230 V multi-way input terminals (Up/Down) for
For inserts 2712/2713/2722/2723/2733 USL-101 and group control.
2712/2733 SLW-5x. With operating mode switch for the following modes:
Protection class (Device): IP 20 normal, louvre, base station, position.
With party function (disables the local control unit) in
combination with Busch-Blind control II control cover
different lock mechanism, with 3 keys 6430-xx-xxx, 6066-xx-xxx.
0520 PZ-VS 2CKA000470A0013 1/100 Wind alarm, cleaning functions can be accommodated
via extension input.
lock mechanism, with 3 keys For control cover 6430-xx-xxx.
For IR control element 6066-xx-xxx.
0521 PZ-GS 2CKA000470A0021 1/100 For comfort timer control element 6455-101-500.
Running time: 3 min
Rated voltage: 230 V~, +10 % / -10 %
2
3
Comfort blind insert ) ) )
1
with memory and positioning function Rated frequency: 50 Hz
For the manual and automatic control of roller blinds. Outputs: 2x Normally open contact
The roller blind moves to the position set using the turn Rated current: 3 A, cos φ 0.5
knob. Executes the individually programmed switching Rated power: 690 VA
commands (UP/DOWN) in a 24-hour rhythm.
Suitable for roller blind drives with mechanical or Control/Signal outputs: 2
electronic limit switch shut-off. Temperature range (Device): 0 °C to 35 °C
Suitable for operation without neutral conductor. 6411 U-500-101 2CKA006410A0378 1/10
Without an extension input. 1) Compatible with types 6411 U/x.
11
Power reserve of 45 minutes (maintenance-free as
capacitor).
Rated voltage: 230 V~, +10 % / -10 % Blind comfort timer, complete set
Rated frequency: 50 Hz Consisting of Busch-Blind control II insert 6411 U-101.
Outputs: 2x Normally open contact Consisting of the comfort timer control element
Rated current: 1.3 A, cos φ 0.5 6455-101.
Rated power: 300 VA Cover frame design future® linear 1721-184K.
Consisting of the future® linear cover plate for timer
Temperature range (Device): 0 °C to 35 °C control element 6435-84.
6419 U 2CKA006410A0390 1/10 studio white 6411 UJ-84-101 2CKA006410A0408 1
1) Pertinent cover plates 6436-xx.
2) N-conductor connection may be required for operation with blind and roller Blind basic timer, complete set
blind drives with electronic limit switch shut-off. If no N-conductor is available, Consisting of blind basic insert 6418 U.
capacitor set 6498 can be used.
3) Only suitable for single unit control. Consisting of the standard timer control element
6456-101.
Cover frame design future® linear 1721-184K.
Basic blind insert ) ) Consisting of the future® linear cover plate for timer
1
2
2-wire blind insert control element 6435-84.
Suitable for blind and roller blind drives with mechanical
or electronic limit switch shut-off. Suitable for operation studio white 6418 UJ-84 2CKA006410A0405 1
without neutral conductor. Without an extension input.
For control cover 6430-xx-xxx.
For standard timer control element 6456-101. Brightness sensor
Running time: 3 min For insert 6411U/S-101.
Rated voltage: 230 V~, +10 % / -10 % With 2 m connecting cable.
Rated frequency: 50 Hz Measuring range: 15-50,000 lux.
Outputs: 2x Normally open contact
Rated current: 3 A, cos φ 0.5
Rated power: 690 VA
6414-101 2CKA006410A0389 1/10
Temperature range (Device): 0 °C to 35 °C
6418 U-500 2CKA006410A0376 1/10 Sun sensor
Mounting 35 mm deep flush 1gang For insert 6411U/S-101.
boxes: or Dual Box 3070-2/35 BSDB. Measuring range: 5-50,000 lux.
2gang product 2gang combination with adapter plate
combinations: APBS in Dual Box only.
1) N-conductor connection required for operation with control cover 6430-7x,
illuminated. 6482 2CKA006410A0203 1
2) N-conductor connection may be required for operation with blind and roller
blind drives with electronic limit switch shut-off. If no N-conductor is available,
capacitor set 6498 can be used.
