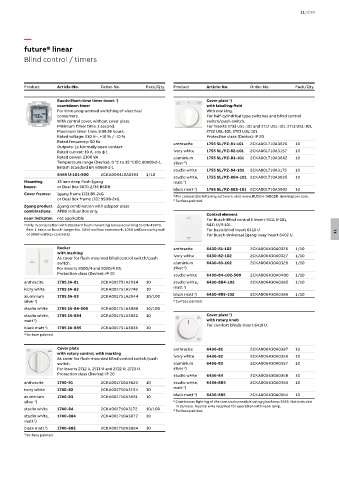

Page 1345 - Din prodcuts 2020

11/239

—
future® linear
Blind control / timers

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

1
Busch-Short-time timer insert ) 1 Cover plate )
countdown timer with labelling field
For time-programmed switching of electrical With marking.
consumers. For half-cylindrical type switches and blind control
With control cover, without cover plate. switch/push-switch.
Minimum timer time: 1 second. For inserts 2733 USL-101 and 2712 USL-101, 2713 USL-101,
Maximum timer time: 9:59:59 hours. 2722 USL-101, 2723 USL-101.
Rated voltage: 230 V~, +10 % / -10 % Protection class (Device): IP 20
Rated frequency: 50 Hz anthracite 1755 SL/PZ-81-101 2CKA001710A3626 10
Outputs: 1x Normally open contact
Rated current: 10 A, cos φ 1 ivory white 1755 SL/PZ-82-101 2CKA001710A3157 10
Rated power: 2300 VA aluminium 1755 SL/PZ-83-101 2CKA001710A3662 10
Temperature range (Device): 0 °C to 35 °CIEC 60669-2-1, silver ) 2
British Standard EN 60669-2-1
studio white 1755 SL/PZ-84-101 2CKA001710A3175 10
6465 U-101-500 2CKA006410A0393 1/10
studio white, 1755 SL/PZ-884-101 2CKA001710A3925 10
Mounting 35 mm deep flush 1gang matt ) 2
boxes: or Dual Box 3070-2/35 BSDB.
black matt ) 2 1755 SL/PZ-885-101 2CKA001710A3902 10
Cover frames: 1gang frame 1721 BS-2xG 1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
or Dual Box frame 1722 BSDB-2xG. 2) Surface painted.
2gang product 2gang combination with adapter plate
combinations: APBS in Dual Box only.
Control element
neon indicator: not applicable For Busch-Blind control II insert 6411 U-101,
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073, 6411 U/S-101.
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall For basic blind insert 6418 U. 11
or 3060 wallbox concrete) For Busch-Universal 2gang 1way insert 6402 U.

Rocker anthracite 6430-81-102 2CKA006430A0326 1/10
with marking
As cover for flush-mounted blind control switch/push ivory white 6430-82-102 2CKA006430A0327 1/10
switch. aluminium 6430-83-102 2CKA006430A0328 1/10
For inserts 2000/4 and 2020/4 US. silver ) 1
Protection class (Device): IP 20 studio white 6430-84-102-500 2CKA006430A0400 1/10
anthracite 1785 JA-81 2CKA001751A2934 10 studio white, 6430-884-102 2CKA006430A0385 1/10
ivory white 1785 JA-82 2CKA001751A2748 10 matt ) 1
aluminium 1785 JA-83 2CKA001751A2944 10/100 black matt ) 1 6430-885-102 2CKA006430A0386 1/10
silver ) 1) Surface painted.
1
studio white 1785 JA-84-500 2CKA001751A3088 10/100
1
studio white, 1785 JA-884 2CKA001751A3022 10 Cover plate )
matt ) with rotary knob
1
For comfort blinds insert 6419 U.
black matt ) 1785 JA-885 2CKA001751A3036 10
1
1) Surface painted.
Cover plate anthracite 6436-81 2CKA006430A0387 10
with rotary control, with marking
As cover for flush-mounted blind control switch/push ivory white 6436-82 2CKA006430A0356 10
switch. aluminium 6436-83 2CKA006430A0357 10
For inserts 2712 U, 2713 U and 2722 U, 2723 U. silver ) 2
Protection class (Device): IP 20 studio white 6436-84 2CKA006430A0358 10
anthracite 1740-81 2CKA001710A3623 10 studio white, 6436-884 2CKA006430A0363 10
ivory white 1740-82 2CKA001710A3154 10 matt ) 2
aluminium 1740-83 2CKA001710A3661 10 black matt ) 2 6436-885 2CKA006430A0364 10
silver ) 1) Continuous lighting of the turn knob possible using glow lamp 3855. Not included
1
in delivery. Neutral wire required for operation with neon lamp.
studio white 1740-84 2CKA001710A3172 10/100 2) Surface painted.
studio white, 1740-884 2CKA001710A3872 10
matt )
1
black matt ) 1740-885 2CKA001710A3894 10
1
1) Surface painted.
