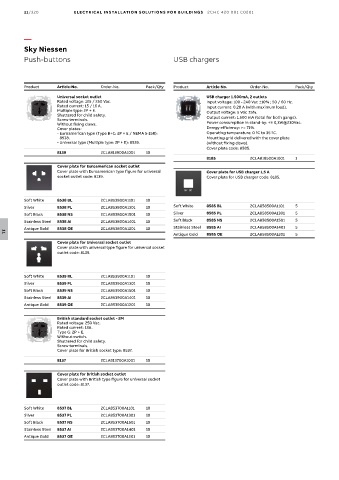

11/320 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Sky Niessen
Push-buttons USB chargers

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Universal socket outlet USB charger 1.500mA, 2 outlets
Rated voltage: 125 / 250 Vac. Input voltage: 100 - 240 Vac ±10% ; 50 / 60 Hz.
Rated current: 15 / 16 A. Input current: 0,20 A (with maximum load).
Multiple type: 2P + E. Output voltage: 5 Vdc ±5%.
Shuttered for child safety. Output current: 1.500 mA (total for both gangs).
Screw terminals.
Without fixing claws. Power consumption in stand-by: <= 0,3W@230Vac.
Cover plates: Energy efficiency: >= 71%.
- Euroamerican type (Type B+C: 2P + E / NEMA 5-15R): Operating temperature: 0 ºC to 35 ºC.
8538. Mounting grid delivered with the cover plate
- Universal type (Multiple type: 2P + E): 8539. (without fixing claws).
Cover plate code: 8585.
8139 2CLA813900A1001 10
8185 2CLA818500A1001 1
Cover plate for Euroamerican socket outlet
Cover plate with Euroamerican type figure for universal Cover plate for USB charger 1,5 A
socket outlet code: 8139. Cover plate for USB charger code: 8185.

Soft White 8538 BL 2CLA853800A1101 10
Silver 8538 PL 2CLA853800A1301 10 Soft White 8585 BL 2CLA858500A1101 5
Soft Black 8538 NS 2CLA853800A1501 10 Silver 8585 PL 2CLA858500A1301 5
Stainless Steel 8538 AI 2CLA853800A1401 10 Soft Black 8585 NS 2CLA858500A1501 5
Antique Gold 8538 OE 2CLA853800A1201 10 Stainless Steel 8585 AI 2CLA858500A1401 5
Antique Gold 8585 OE 2CLA858500A1201 5
11
Cover plate for Universal socket outlet
Cover plate with universal type figure for universal socket
outlet code: 8139.

Soft White 8539 BL 2CLA853900A1101 10
Silver 8539 PL 2CLA853900A1301 10
Soft Black 8539 NS 2CLA853900A1501 10
Stainless Steel 8539 AI 2CLA853900A1401 10
Antique Gold 8539 OE 2CLA853900A1201 10

British standard socket outlet - 2M
Rated voltage: 250 Vac.
Rated current: 13A.
Type G: 2P + E.
Without switch.
Shuttered for child safety.
Screw terminals.
Cover plate for British socket type: 8537.
8137 2CLA813700A1001 10

Cover plate for British socket outlet
Cover plate with British type figure for universal socket
outlet code: 8137.

Soft White 8537 BL 2CLA853700A1101 10
Silver 8537 PL 2CLA853700A1301 10
Soft Black 8537 NS 2CLA853700A1501 10
Stainless Steel 8537 AI 2CLA853700A1401 10
Antique Gold 8537 OE 2CLA853700A1201 10
