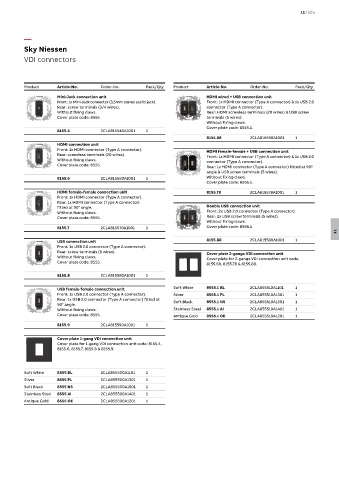

Page 1431 - Din prodcuts 2020

11/325

—
Sky Niessen
VDI connectors

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Mini-Jack connection unit HDMI wired + USB connection unit
Front: 1x Mini-Jack connector (3,5mm stereo audio jack). Front: 1x HDMI connector (Type A connector) & 1x USB 2.0
Rear: screw terminals (3/4 wires). connector (Type A connector).
Without fixing claws. Rear: HDMI screwless terminals (20 wires) & USB screw
Cover plate code: 8555. terminals (5 wires).
Without fixing claws.
Cover plate code: 8555.1.
8155.4 2CLA815540A1001 1
8155.68 2CLA815568A1001 1
HDMI connection unit
Front: 1x HDMI connector (Type A connector). HDMI female-female + USB connection unit
Rear: screwless terminals (20 wires). Front: 1x HDMI connector (Type A connector) & 1x USB 2.0
Without fixing claws. connector (Type A connector).
Cover plate code: 8555. Rear: 1x HDMI connector (Type A connector) fitted at 90º
angle & USB screw terminals (5 wires).
8155.6 2CLA815560A1001 1 Without fixing claws.
Cover plate code: 8555.1.

HDMI female-female connection unit 8155.78 2CLA815578A1001 1
Front: 1x HDMI connector (Type A connector).
Rear: 1x HDMI connector (Type A connector)
fitted at 90° angle. Double USB connection unit
Without fixing claws. Front: 2x USB 2.0 connector (Type A connector).
Cover plate code: 8555. Rear: 2x USB screw terminals (5 wires).
Without fixing claws.
8155.7 2CLA815570A1001 1 Cover plate code: 8555.1.
11
USB connection unit 8155.88 2CLA815588A1001 1
Front: 1x USB 2.0 connector (Type A connector).
Rear: screw terminals (5 wires). Cover plate 2-gangs VDI connection unit
Without fixing claws. Cover plate for 2-gangs VDI connection unit code:
Cover plate code: 8555. 8155.68, 8155.78 & 8155.88.

8155.8 2CLA815580A1001 1

USB female-female connection unit Soft White 8555.1 BL 2CLA855510A1101 1
Front: 1x USB 2.0 connector (Type A connector). Silver 8555.1 PL 2CLA855510A1301 1
Rear: 1x USB 2.0 connector (Type A connector) fitted at
90° angle. Soft Black 8555.1 NS 2CLA855510A1501 1
Without fixing claws. Stainless Steel 8555.1 AI 2CLA855510A1401 1
Cover plate code: 8555. Antique Gold 8555.1 OE 2CLA855510A1201 1

8155.9 2CLA815590A1001 1

Cover plate 1-gang VDI connection unit
Cover plate for 1-gang VDI connection unit code: 8155.4,
8155.6, 8155.7, 8155.8 & 8155.9.

Soft White 8555 BL 2CLA855500A1101 1
Silver 8555 PL 2CLA855500A1301 1
Soft Black 8555 NS 2CLA855500A1501 1
Stainless Steel 8555 AI 2CLA855500A1401 1
Antique Gold 8555 OE 2CLA855500A1201 1
