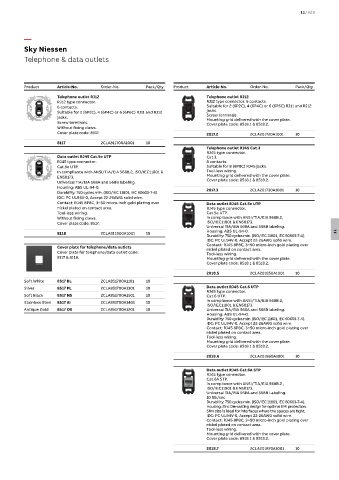

Page 1429 - Din prodcuts 2020

11/323

—
Sky Niessen
Telephone & data outlets

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Telephone outlet RJ12 Telephone outlet RJ12
RJ12 type connector. RJ12 type connector. 6 contacts.
6 contacts. Suitable for 2 (6P2C), 4 (6P4C) or 6 (6P6C) RJ11 and RJ12
Suitable for 2 (6P2C), 4 (6P4C) or 6 (6P6C) RJ11 and RJ12 jacks.
jacks. Screw terminals.
Mounting grid delivered with the cover plate.
Screw terminals. Cover plate code: 8518.1 & 8518.2.
Without fixing claws.
Cover plate code: 8517. 2017.2 2CLA201720A1001 10
8117 2CLA811700A1001 10
Telephone outlet RJ45 Cat.3
RJ45 type connector.
Data outlet RJ45 Cat.5e UTP Cat.3.
RJ45 type connector. 8 contacts.
Cat.5e UTP. Suitable for 8 (8P8C) RJ45 jacks.
In compliance with ANSI/TIA/EIA 568B.2, ISO/IEC11801 & Tool-less wiring.
EN50173. Mounting grid delivered with the cover plate.
Universal TIA/EIA 568A and 568B labeling. Cover plate code: 8518.1 & 8518.2.
Housing: ABS UL-94-0.
Durability: 750 cycles min. (ISO/IEC 11801, IEC 60603-7-4) 2017.3 2CLA201730A1001 10
IDC: PC UL94V-0, Accept 22-26AWG solid wire.
Contact: RJ45 8P8C, 3~50 micro-inch gold plating over Data outlet RJ45 Cat.5e UTP
nickel plated on contact area. RJ45 type connector.
Tool-less wiring. Cat.5e UTP.
Without fixing claws. In compliance with ANSI/TIA/EIA 568B.2,
Cover plate code: 8517. ISO/IEC11801 & EN50173.
Universal TIA/EIA 568A and 568B labeling.
Housing: ABS UL-94-0. 11
8118 2CLA811800A1001 10
Durability: 750 cycles min. (ISO/IEC 11801, IEC 60603-7-4).
IDC: PC UL94V-0, Accept 22-26AWG solid wire.
Contact: RJ45 8P8C, 3~50 micro-inch gold plating over
Cover plate for telephone/data outlets nickel plated on contact area.
Cover plate for telephone/data outlet code: Tool-less wiring.
8117 & 8118. Mounting grid delivered with the cover plate.
Cover plate code: 8518.1 & 8518.2.
2018.5 2CLA201850A1001 10
Soft White 8517 BL 2CLA851700A1101 10
Silver 8517 PL 2CLA851700A1301 10 Data outlet RJ45 Cat.6 UTP
RJ45 type connector.
Soft Black 8517 NS 2CLA851700A1501 10 Cat.6 UTP.
Stainless Steel 8517 AI 2CLA851700A1401 10 In compliance with ANSI/TIA/EIA 568B.2,
ISO/IEC11801 & EN50173.
Antique Gold 8517 OE 2CLA851700A1201 10 Universal TIA/EIA 568A and 568B labeling.
Housing: ABS UL-94-0.
Durability: 750 cycles min. (ISO/IEC 11801, IEC 60603-7-4).
IDC: PC UL94V-0, Accept 22-26AWG solid wire.
Contact: RJ45 8P8C, 3~50 micro-inch gold plating over
nickel plated on contact area.
Tool-less wiring.
Mounting grid delivered with the cover plate.
Cover plate code: 8518.1 & 8518.2.
2018.6 2CLA201860A1001 10
Data outlet RJ45 Cat.6A STP
RJ45 type connector.
Cat.6A STP.
In compliance with ANSI/TIA/EIA 568B.2 ,
ISO/IEC11801 & EN50173.
Universal TIA/EIA 568A and 568B Labeling.
10 Gb/sec.
Durability: 750 cycles min. (ISO/IEC 11801, IEC 60603-7-4).
Housing: Zinc Die-casting design for optimal EMI protection.
Slim size is ideal for interfaces where the spaces are tight.
IDC: PC UL94V-0, Accept 22-26AWG solid wire.
Contact: RJ45 8P8C, 3~50 micro-inch gold plating over
nickel plated on contact area.
Tool-less wiring.
Mounting grid delivered with the cover plate.
Cover plate code: 8518.1 & 8518.2.
2018.7 2CLA201870A1001 10
