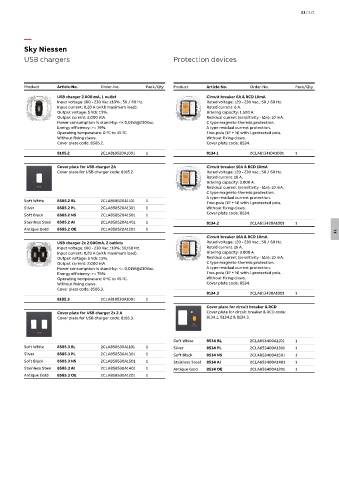

Page 1427 - Din prodcuts 2020

11/321

—
Sky Niessen
USB chargers Protection devices

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

USB charger 2.000 mA, 1 outlet Circuit breaker 6A & RCD 10mA
Input voltage: 100 - 230 Vac ±10% ; 50 / 60 Hz. Rated voltage: 120 - 230 Vac ; 50 / 60 Hz.
Input current: 0,20 A (with maximum load). Rated current: 6 A.
Output voltage: 5 Vdc ±5%. Braking capacity: 1.500 A.
Output current: 2.000 mA. Residual current (sensitivity - I∆n): 10 mA.
Power consumption in stand-by: <= 0,01W@230Vac. C type magneto-thermic protection.
Energy efficiency: >= 79%. A type residual current protection.
Operating temperature: 0 ºC to 45 ºC. Two-pole (1P + N) with 1 protected pole.
Without fixing claws. Without fixing claws.
Cover plate code: 8585.2. Cover plate code: 8534.
8185.2 2CLA818520A1001 1 8134.1 2CLA813410A1001 1

Cover plate for USB charger 2A Circuit breaker 10A & RCD 10mA
Cover plate for USB charger code: 8185.2. Rated voltage: 120 - 230 Vac ; 50 / 60 Hz.
Rated current: 10 A.
Braking capacity: 3.000 A.
Residual current (sensitivity - I∆n): 10 mA.
C type magneto-thermic protection.
A type residual current protection.
Soft White 8585.2 BL 2CLA858520A1101 1
Two-pole (1P + N) with 1 protected pole.
Silver 8585.2 PL 2CLA858520A1301 1 Without fixing claws.
Cover plate code: 8534.
Soft Black 8585.2 NS 2CLA858520A1501 1
Stainless Steel 8585.2 AI 2CLA858520A1401 1 8134.2 2CLA813420A1001 1
Antique Gold 8585.2 OE 2CLA858520A1201 1
11
Circuit breaker 16A & RCD 10mA
USB charger 2x 2.000mA, 2 outlets Rated voltage: 120 - 230 Vac ; 50 / 60 Hz.
Input voltage: 100 - 230 Vac ±10%; 50/60 Hz. Rated current: 16 A.
Input current: 0,20 A (with maximum load). Braking capacity: 3.000 A.
Output voltage: 5 Vdc ±5%. Residual current (sensitivity - I∆n): 10 mA.
Output current: 2.000 mA. C type magneto-thermic protection.
Power consumption in stand-by: <= 0,01W@230Vac. A type residual current protection.
Energy efficiency: >= 79%. Two-pole (1P + N) with 1 protected pole.
Operating temperature: 0 ºC to 45 ºC. Without fixing claws.
Without fixing claws. Cover plate code: 8534.
Cover plate code: 8585.3.
8134.3 2CLA813430A1001 1
8185.3 2CLA818530A1001 1
Cover plate for circuit breaker & RCD
Cover plate for USB charger 2x 2 A Cover plate for circuit breaker & RCD code:
Cover plate for USB charger code: 8185.3. 8134.1, 8134.2 & 8134.3.

Soft White 8534 BL 2CLA853400A1101 1
Soft White 8585.3 BL 2CLA858530A1101 1 Silver 8534 PL 2CLA853400A1301 1
Silver 8585.3 PL 2CLA858530A1301 1 Soft Black 8534 NS 2CLA853400A1501 1
Soft Black 8585.3 NS 2CLA858530A1501 1 Stainless Steel 8534 AI 2CLA853400A1401 1
Stainless Steel 8585.3 AI 2CLA858530A1401 1 Antique Gold 8534 OE 2CLA853400A1201 1
Antique Gold 8585.3 OE 2CLA858530A1201 1
