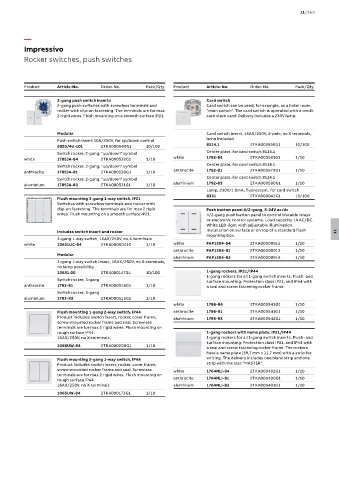

Page 1475 - Din prodcuts 2020

11/369

—
Impressivo
Rocker switches, push switches

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

2-gang push switch inserts Card switch
2-gang push switches with screwless terminals and Card switch can be used, for example, as a hotel room
rocker with clip-on fastening. The terminals are for max ”main switch”. The card switch is operated with a credit
2 rigid wires. Flush mounting on a smooth surface IP21. card sized card. Delivery includes a 230V lamp.

Modular Card switch insert, 16AX/250V, 2-pole, no X terminals,
Push switch insert 10A/250V, for up/down control lamp included
2020/4U-101 2TKA000640G1 10/100 8114.1 2TKA003950G1 10/100
Switch rocker, 2-gang, "up/down" symbol Center plate, for card switch 8114.1
white 1785JA-84 2TKA000532G1 1/10 white 1792-84 2TKA000581G1 1/10
Switch rocker, 2-gang, "up/down" symbol Center plate, for card switch 8114.1
anthracite 1785JA-81 2TKA000530G1 1/10 anthracite 1792-81 2TKA000579G1 1/10
Switch rocker, 2-gang, "up/down" symbol Center plate, for card switch 8114.1
aluminium 1785JA-83 2TKA000531G1 1/10 aluminium 1792-83 2TKA000580G1 1/10
Lamp, 230V/1.5mA, fluorescent, for card switch
8331 2TKA000042G1 10/100
Flush mounting 3-gang 1-way switch, IP21
Switches with screwless terminals and rocker with
clip-on fastening. The terminals are for max 2 rigid Push button panel 4/2-gang, 5-24V ac/dc
wires. Flush mounting on a smooth surface IP21. 4/2-gang push button panel to control bistable relays
or electronic control systems. Load capacity 1A AC/DC.
White LED-light with adjustable illumination.
Includes switch insert and rocker Installation on surface or on top of a standard flush 11
mounting box.
3-gang 1-way switch, 16AX/250V, no X-terminals
white 10631UC-84 2TKA00000410 1/10 white FAP1204-84 2TKA00000915 1/10
anthracite FAP1204-81 2TKA00000913 1/10
Modular
aluminium FAP1204-83 2TKA00000914 1/10
3-gang 1-way switch insert, 16AX/250V, no X-terminals,
no lamp possibility
10631.00 2TKA000147G1 10/100 1-gang rockers, IP21/IP44
1-gang rockers for all 1-gang switch inserts. Flush- and
Switch rocker, 3-gang surface mounting: Protection class IP21, and IP44 with
anthracite 1783-81 2TKA000514G1 1/10 a seal and screw fastening rocker frame.
Switch rocker, 3-gang
aluminium 1783-83 2TKA000515G1 1/10
white 1786-84 2TKA000543G1 1/10
Flush mounting 1-gang 2-way switch, IP44 anthracite 1786-81 2TKA000541G1 1/10
Product includes switch insert, rocker, cover frame, aluminium 1786-83 2TKA000542G1 1/10
screw-mounted rocker frame and seal. Screwless
terminals are for max 2 rigid wires. Flush mounting on
rough surface IP44. 1-gang rockers with name plate, IP21/IP44
16AX/250V, no X-terminals. 1-gang rockers for all 1-gang switch inserts. Flush- and
surface mounting: Protection class IP21, and IP44 with
1066UW-84 2TKA000200G1 1/10 a seal and screw fastening rocker frame. The rockers
have a name plate (59,7 mm x 11,7 mm) with a strip for
Flush mounting 2-gang 1-way switch, IP44 writing. The delivery includes one blank strip and one
Product includes switch insert, rocker, cover frame, strip with the text "MASTER".
screw-mounted rocker frame and seal. Screwless white 1764NLI-84 2TKA000492G1 1/10
terminals are for max 2 rigid wires. Flush mounting on
rough surface IP44. anthracite 1764NLI-81 2TKA000490G1 1/10
16AX/250V, no X-terminals aluminium 1764NLI-83 2TKA000491G1 1/10
1065UW-84 2TKA000173G1 1/10
