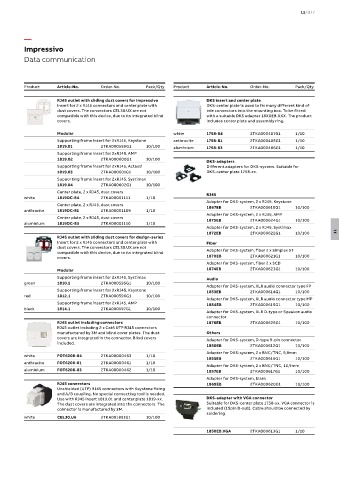

Page 1483 - Din prodcuts 2020

11/377

—
Impressivo
Data communication

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

RJ45 outlet with sliding dust covers for Impressivo DKS insert and center plate
Insert for 2 x RJ45 connectors and center plate with DKS-center plate is used to fix many different kind of
dust covers. The connectors CEL30.UX are not tele connectors into the mounting box. To be fitted
compatible with this device, due to its integrated blind with a suitable DKS adapter 18XXEB.XXX. The product
covers. includes center plate and assembly ring.

Modular white 1758-84 2TKA000487G1 1/10
Supporting frame insert for 2xRJ45, Keystone anthracite 1758-81 2TKA000485G1 1/10
1819.01 2TKA000599G1 10/100 aluminium 1758-83 2TKA000486G1 1/10
Supporting frame insert for 2xRJ45, AMP
1819.02 2TKA000600G1 10/100
DKS-adapters
Supporting frame insert for 2xRJ45, Actassi Different adapters for DKS-system. Suitable for
1819.03 2TKA000601G1 10/100 DKS-center plate 1758-xx.
Supporting frame insert for 2xRJ45, Systimax
1819.04 2TKA000602G1 10/100
Center plate, 2 x RJ45, dust covers RJ45
white 1819DC-84 2TKA00001111 1/10
Adapter for DKS-system, 2 x RJ45, Keystone
Center plate, 2 x RJ45, dust covers 1867EB 2TKA000618G1 10/100
anthracite 1819DC-81 2TKA00001109 1/10
Adapter for DKS-system, 2 x RJ45, AMP
Center plate, 2 x RJ45, dust covers
aluminium 1819DC-83 2TKA00001110 1/10 1875EB 2TKA000624G1 10/100
Adapter for DKS-system, 2 x RJ45, Systimax
1872EB 2TKA000622G1 10/100 11
RJ45 outlet with sliding dust covers for design-series
Insert for 2 x RJ45 connectors and center plate with Fiber
dust covers. The connectors CEL30.UX are not
compatible with this device, due to its integrated blind Adapter for DKS-system, fiber 2 x Simplex ST
covers. 1870EB 2TKA000621G1 10/100
Adapter for DKS-system, fiber 2 x SCD
Modular 1874EB 2TKA000623G1 10/100
Supporting frame insert for 2xRJ45, Systimax Audio
green 1810.1 2TKA000595G1 10/100
Adapter for DKS-system, XLR audio connector type FP
Supporting frame insert for 2xRJ45, Keystone 1853EB 2TKA000614G1 10/100
red 1812.1 2TKA000596G1 10/100
Adapter for DKS-system, XLR audio connector type MP
Supporting frame insert for 2xRJ45, AMP 1854EB 2TKA000615G1 10/100
black 1814.1 2TKA000597G1 10/100
Adapter for DKS-system, XLR D-type or Speakon audio
connector
RJ45 outlet including connectors 1876EB 2TKA000626G1 10/100
RJ45 outlet including 2 x Cat6 UTP RJ45 connectors
manufactured by 3M and blind cover plates. The dust Others
covers are integrated in the connector. Blind covers Adapter for DKS-system, D-type 9-pin connector
included.
1850EB 2TKA000612G1 10/100
Adapter for DKS-system, 2 x BNC/TNC, 9,8mm
white FOT6208-84 2TKA00000463 1/10
1855EB 2TKA000616G1 10/100
anthracite FOT6208-81 2TKA00000461 1/10
Adapter for DKS-system, 2 x BNC/TNC, 12,9mm
aluminium FOT6208-83 2TKA00000462 1/10 1857EB 2TKA000617G1 10/100
Adapter for DKS-system, blank
RJ45 connectors 1869EB 2TKA000620G1 10/100
Unshielded (UTP) RJ45 connectors with Keystone fixing
and A/B coupling. No special connecting tool is needed.
Use with RJ45 insert 1819.01 and center plate 1819-xx. DKS-adapter with VGA connector
The dust covers are integrated into the connectors. The Suitable for DKS-center plate 1758-xx. VGA connector is
connector is manufactured by 3M. included (15pin D-sub). Cable should be connected by
soldering.
white CEL30.U6 2TKA001891G1 10/100

1850EB.VGA 2TKA000613G1 1/10
