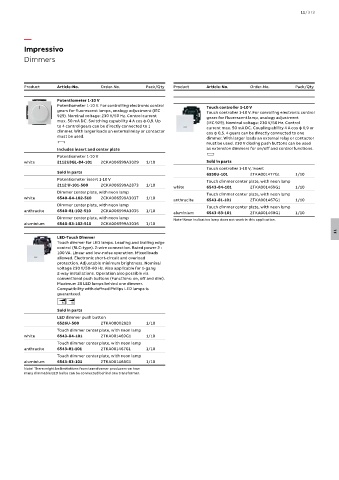

Page 1479 - Din prodcuts 2020

11/373

—
Impressivo
Dimmers

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Potentiometer 1-10 V
Potentiometer 1-10 V. For controlling electronic control Touch controller 1-10 V
gears for fluorescent lamps, analogy adjustment (IEC Touch controller 1-10 V. For conrolling electronic control
929). Nominal voltage: 230 V/50 Hz. Control current gears for fluorescent lamp, analogy adjustment
max. 50 mA DC. Switching capability 4 A cos φ 0,9. Up (IEC 929). Nominal voltage: 230 V/50 Hz. Control
to 4 control gears can be directly connected to 1 current max. 50 mA DC. Coupling ability 4 A cos φ 0,9 or
dimmer. With larger loads an external relay or contactor cos φ 0,5. 4 gears can be directly connected to one
must be used.
dimmer. With larger loads an external relay or contactor
must be used. 230 V closing push buttons can be used
Includes insert and center plate as extension dimmers for on/off and control functions.
Potentiometer 1-10 V
white 2112UJGL-84-101 2CKA006599A3029 1/10 Sold in parts
Touch controller 1-10 V, insert
Sold in parts
6550U-101 2TKA001477G1 1/10
Potentiometer insert 1-10 V Touch dimmer center plate, with neon lamp
2112 U-101-500 2CKA006599A2873 1/10 white 6543-84-101 2TKA001469G1 1/10
Dimmer center plate, with neon lamp Touch dimmer center plate, with neon lamp
white 6540-84-102-510 2CKA006599A3037 1/10
anthracite 6543-81-101 2TKA001467G1 1/10
Dimmer center plate, with neon lamp Touch dimmer center plate, with neon lamp
anthracite 6540-81-102-510 2CKA006599A3035 1/10
aluminium 6543-83-101 2TKA001468G1 1/10
Dimmer center plate, with neon lamp
Note! Neon indication lamp does not work in this application.
aluminium 6540-83-102-510 2CKA006599A3036 1/10
11
LED-Touch Dimmer
Touch dimmer for LED lamps. Leading and trailing edge
control (RLC-type). 2-wire connection. Rated power 2 -
100 VA. Linear and low-noise operation. Mixed loads
allowed. Electronic short-circuit and overload
protection. Adjustable minimum brightness. Nominal
voltage 230 V/50-60 Hz. Also applicable for 1-gang
2-way installations. Operation also possible via
conventional push buttons (Functions: on, off and dim).
Maximum 20 LED lamps behind one dimmer.
Compatibility with defined Philips LED lamps is
guaranteed.

Sold in parts
LED dimmer push button
6526U-500 2TKA00002920 1/10
Touch dimmer center plate, with neon lamp
white 6543-84-101 2TKA001469G1 1/10
Touch dimmer center plate, with neon lamp
anthracite 6543-81-101 2TKA001467G1 1/10
Touch dimmer center plate, with neon lamp
aluminium 6543-83-101 2TKA001468G1 1/10
Note! There might be limitations from transformer producers on how
many dimmable LED bulbs can be connected behind one transformer.
