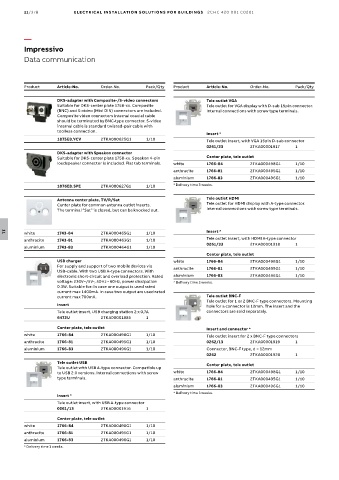

Page 1484 - Din prodcuts 2020

11/378 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Impressivo
Data communication

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

DKS-adapter with Composite-/S-video connectors Tele outlet VGA
Suitable for DKS-center plate 1758-xx. Composite Tele outlet for VGA display with D-sub 15pin connector.
(BNC) and S-video (Mini DIN) connectors are included. Internal connections with screw type terminals.
Composite video connectors internal coaxial cable
should be terminated by BNC-type connector. S-video
internal cable is standard twisted-pair cable with
toolless connection.
Insert *
1875EB.YCV 2TKA000625G1 1/10 Tele outlet insert, with VGA 15pin D-sub connector
0261/23 2TKA00001917 1
DKS-adapter with Speakon connector
Suitable for DKS-center plate 1758-xx. Speakon 4-pin Center plate, tele outlet
loudspeaker connector is included. Flat tab terminals. white 1766-84 2TKA000498G1 1/10
anthracite 1766-81 2TKA000495G1 1/10
aluminium 1766-83 2TKA000496G1 1/10
1876EB.SPE 2TKA000627G1 1/10 * Delivery time 3 weeks.

Antenna center plate, TV/R/Sat Tele outlet HDMI
Center plate for common antenna outlet inserts. Tele outlet for HDMI display with A-type connector.
The terminal “Sat” is closed, but can be knocked out. Internal connections with screw type terminals.

white 1743-84 2TKA000465G1 1/10 Insert *
11
anthracite 1743-81 2TKA000463G1 1/10 Tele outlet insert, with HDMI A-type connector
0261/33 2TKA00001918 1
aluminium 1743-83 2TKA000464G1 1/10
Center plate, tele outlet
USB charger white 1766-84 2TKA000498G1 1/10
For supply and support of two mobile devices via anthracite 1766-81 2TKA000495G1 1/10
USB-cable. With two USB A-type connectors. With
electronic short-circuit and overload protection. Rated aluminium 1766-83 2TKA000496G1 1/10
voltage: 230V~/5V-, 50Hz - 60Hz, power dissipation * Delivery time 3 weeks.
0.3W. Suitable for: In case one output is used rated
current max 1400mA. In case two output are used rated
current max 700mA. Tele outlet BNC-F
Tele outlet for 1 or 2 BNC-F type connectors. Mounting
Insert hole for a connector is 12mm. The insert and the
Tele outlet insert, USB charging station 2 x 0,7A connectors are sold separately.
6472U 2TKA00001885 1
Center plate, tele outlet Insert and connector *
white 1766-84 2TKA000498G1 1/10 Tele outlet insert for 2 x BNC-F type connectors
anthracite 1766-81 2TKA000495G1 1/10 0262/13 2TKA00001919 1
aluminium 1766-83 2TKA000496G1 1/10 Connector, BNC-F type, d = 12mm
0262 2TKA00001920 1
Tele outlet USB Center plate, tele outlet
Tele outlet with USB A-type connector. Compatible up
to USB 2.0 versions. Internal connections with screw white 1766-84 2TKA000498G1 1/10
type terminals. anthracite 1766-81 2TKA000495G1 1/10
aluminium 1766-83 2TKA000496G1 1/10
* Delivery time 3 weeks.
Insert *
Tele outlet insert, with USB A-type connector
0261/13 2TKA00001916 1
Center plate, tele outlet
white 1766-84 2TKA000498G1 1/10
anthracite 1766-81 2TKA000495G1 1/10
aluminium 1766-83 2TKA000496G1 1/10
* Delivery time 3 weeks.
