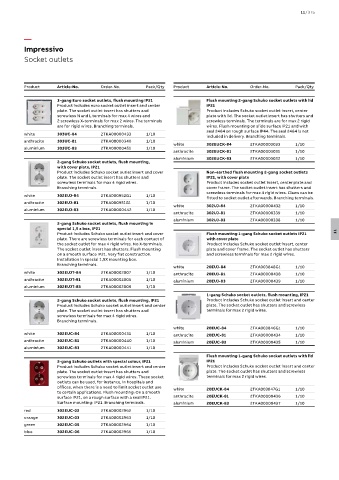

Page 1481 - Din prodcuts 2020

11/375

—
Impressivo
Socket outlets

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

3-gang Euro socket outlets, flush mounting IP21 Flush mounting 2-gang Schuko socket outlets with lid
Product includes euro socket outlet insert and center IP21
plate. The socket outlet insert has shutters and Product includes Schuko socket outlet insert, center
screwless N and L terminals for max 4 wires and plate with lid. The socket outlet insert has shutters and
2 screwless X-terminals for max 2 wires. The terminals screwless terminals. The terminals are for max 2 rigid
are for rigid wires. Branching terminals. wires. Flush mounting on slide surface IP21 and with
seal 2464 on rough surface IP44. The seal 2464 is not
white 303UC-84 2TKA00000433 1/10
included in delivery. Branching terminals.
anthracite 303UC-81 2TKA00000340 1/10
white 302EUCK-84 2TKA00003033 1/10
aluminium 303UC-83 2TKA00000451 1/10
anthracite 302EUCK-81 2TKA00003031 1/10
aluminium 302EUCK-83 2TKA00003032 1/10
2-gang Schuko socket outlets, flush mounting,
with cover plate, IP21
Product includes Schuko socket outlet insert and cover Non-earthed flush mounting 2-gang socket outlets
plate. The socket outlet insert has shutters and IP21, with cover plate
screwless terminals for max 4 rigid wires. Product includes socket outlet insert, center plate and
Branching terminals. cover frame. The socket outlet insert has shutters and
screwless terminals for max 4 rigid wires. Claws can be
white 302EUJ-84 2TKA000952G1 1/10
fitted to socket outlet afterwards. Branching terminals.
anthracite 302EUJ-81 2TKA000951G1 1/10
white 302UJ-84 2TKA00000432 1/10
aluminium 302EUJ-83 2TKA00000442 1/10
anthracite 302UJ-81 2TKA00000339 1/10
aluminium 302UJ-83 2TKA00000338 1/10
2-gang Schuko socket outlets, flush mounting in
special 1,5 x box, IP21
Product includes Schuko socket outlet insert and cover Flush mounting 1-gang Schuko socket outlets IP21 11
plate. There are screwless terminals for each contact of with cover plate
the socket outlet for max 4 rigid wires. No X-terminals. Product includes Schuko socket outlet insert, center
The socket outlet insert has shutters. Flush mounting plate and cover frame. The socket outlet has shutters
on a smooth surface IP21. Very flat construction. and screwless terminals for max 2 rigid wires.
Installation in special 1,5X mounting box.
Branching terminals.
white 20EUJ-84 2TKA003848G1 1/10
white 302EUJT-84 2TKA00002007 1/10 anthracite 20EUJ-81 2TKA00000438 1/10
anthracite 302EUJT-81 2TKA00002005 1/10 aluminium 20EUJ-83 2TKA00000439 1/10
aluminium 302EUJT-83 2TKA00002006 1/10
1-gang Schuko socket outlets, flush mounting, IP21
2-gang Schuko socket outlets, flush mounting, IP21 Product includes Schuko socket outlet insert and center
Product includes Schuko socket outlet insert and center plate. The socket outlet has shutters and screwless
plate. The socket outlet insert has shutters and terminals for max 2 rigid wires.
screwless terminals for max 4 rigid wires.
Branching terminals.
white 20EUC-84 2TKA003846G1 1/10
white 302EUC-84 2TKA00000431 1/10 anthracite 20EUC-81 2TKA00000434 1/10
anthracite 302EUC-81 2TKA00000440 1/10 aluminium 20EUC-83 2TKA00000435 1/10
aluminium 302EUC-83 2TKA00000441 1/10
Flush mounting 1-gang Schuko socket outlets with lid
2-gang Schuko outlets with special colour, IP21 IP21
Product includes Schuko socket outlet insert and center Product includes Schuko socket outlet insert and center
plate. The socket outlet insert has shutters and plate. The socket outlet has shutters and screwless
screwless terminals for max 4 rigid wires. These socket terminals for max 2 rigid wires.
outlets can be used, for instance, in hospitals and
offices, when there is a need to limit socket outlet use white 20EUCK-84 2TKA003847G1 1/10
to certain applications. Flush mounting: On a smooth
surface IP21, on a rough surface with a seal IP21. anthracite 20EUCK-81 2TKA00000436 1/10
Surface mounting: IP21. Branching terminals. aluminium 20EUCK-83 2TKA00000437 1/10
red 302EUC-02 2TKA00002962 1/10
orange 302EUC-03 2TKA00002963 1/10
green 302EUC-05 2TKA00002964 1/10
blue 302EUC-06 2TKA00002965 1/10
