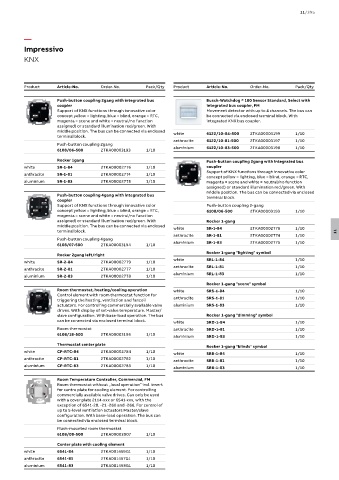

Page 1501 - Din prodcuts 2020

11/395

—
Impressivo
KNX

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Push-button coupling 2gang with integrated bus Busch-Watchdog ® 180 Sensor Standard, Select with
coupler integrated bus coupler, FM
Support of KNX functions through innovative color Movement detector with up to 4 channels. The bus can
concept yellow = lighting, blue = blind, orange = RTC, be connected via enclosed terminal block. With
magenta = scene and white = neutral/no function integrated KNX bus coupler.
assigned) or standard illumination red/green. With
middle position. The bus can be connected via enclosed
terminal block. white 6122/10-84-500 2TKA00003199 1/10
anthracite 6122/10-81-500 2TKA00003197 1/10
Push-button coupling 2gang
6108/06-500 2TKA00003193 1/10 aluminium 6122/10-83-500 2TKA00003198 1/10
Rocker 1gang Push-button coupling 2gang with integrated bus
white SR-1-84 2TKA00002776 1/10 coupler
Support of KNX functions through innovative color
anthracite SR-1-81 2TKA00002774 1/10
concept yellow = lighting, blue = blind, orange = RTC,
aluminium SR-1-83 2TKA00002775 1/10 magenta = scene and white = neutral/no function
assigned) or standard illumination red/green. With
middle position. The bus can be connected via enclosed
Push-button coupling 4gang with integrated bus terminal block.
coupler
Support of KNX functions through innovative color Push-button coupling 2-gang
concept yellow = lighting, blue = blind, orange = RTC, 6108/06-500 2TKA00003193 1/10
magenta = scene and white = neutral/no function
assigned) or standard illumination red/green. With Rocker 1-gang
middle position. The bus can be connected via enclosed white SR-1-84 2TKA00002776 1/10
terminal block. 11
anthracite SR-1-81 2TKA00002774 1/10
Push-button coupling 4gang
6108/07-500 2TKA00003194 1/10 aluminium SR-1-83 2TKA00002775 1/10
Rocker 1-gang "lighting" symbol
Rocker 2gang left/right
white SRL-1-84 1/10
white SR-2-84 2TKA00002779 1/10
anthracite SRL-1-81 1/10
anthracite SR-2-81 2TKA00002777 1/10
aluminium SRL-1-83 1/10
aluminium SR-2-83 2TKA00002778 1/10
Rocker 1-gang "scene" symbol
Room thermostat, heating/cooling operation white SRS-1-84 1/10
Control element with room thermostat function for
triggering the heating, ventilation and fancoil anthracite SRS-1-81 1/10
actuators. For controlling commercially available valve aluminium SRS-1-83 1/10
drives. With display of set-value temperature. Master/
slave configuration. With base-load operation. The bus Rocker 1-gang "dimming" symbol
can be connected via enclosed terminal block. white SRD-1-84 1/10
Room thermostat anthracite SRD-1-81 1/10
6108/18-500 2TKA00003196 1/10 aluminium SRD-1-83 1/10
Thermostat center plate
Rocker 1-gang "blinds" symbol
white CP-RTC-84 2TKA00002784 1/10 white SRB-1-84 1/10
anthracite CP-RTC-81 2TKA00002782 1/10
anthracite SRB-1-81 1/10
aluminium CP-RTC-83 2TKA00002783 1/10 aluminium SRB-1-83 1/10

Room Temperature Controller, Commercial, FM
Room thermostat without „local operation“ incl. insert
for centre plate for cooling element. For controlling
commercially available valve drives. Can only be used
with a cover plate 2114-xxx or 6541-xxx, with the
exception of 6541-20. -21.-260 and -266. For control of
up to 5-level ventilation actuators Master/slave
configuration. With base-load operation. The bus can
be connected via enclosed terminal block.
Flush-mounted room thermostat
6108/08-500 2TKA00003007 1/10
Center plate with cooling element
white 6541-84 2TKA001459G1 1/10
anthracite 6541-81 2TKA001457G1 1/10
aluminium 6541-83 2TKA001458G1 1/10
