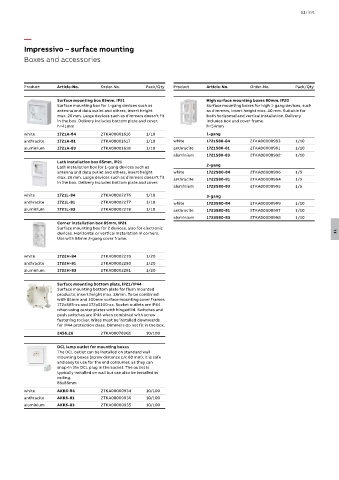

Impressivo – surface mounting
Boxes and accessories

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Surface mounting box 85mm, IP21 High surface mounting boxes 80mm, IP20
Surface mounting box for 1-gang devices such as Surface mounting boxes for high 1-gang devices, such
antenna and data outlet and others, insert height as dimmers, insert height max. 40 mm. Suitable for
max. 26 mm. Large devices such as dimmers doesn't fit both horizontal and vertical installation. Delivery
in the box. Delivery includes bottom plate and cover. includes box and cover frame.
h=41mm h=54mm
white 1721A-84 2TKA00001616 1/10 1-gang
anthracite 1721A-81 2TKA00001617 1/10 white 1721S80-84 2TKA00000993 1/10
aluminium 1721A-83 2TKA00001618 1/10 anthracite 1721S80-81 2TKA00000991 1/10
aluminium 1721S80-83 2TKA00000992 1/10
Lath installation box 85mm, IP21
Lath installation box for 1-gang devices such as 2-gang
antenna and data outlet and others, insert height white 1722S80-84 2TKA00000996 1/5
max. 26 mm. Large devices such as dimmers doesn't fit anthracite 1722S80-81 2TKA00000994 1/5
in the box. Delivery includes bottom plate and cover.
aluminium 1722S80-83 2TKA00000995 1/5
white 1721L-84 2TKA00002276 1/10 3-gang
anthracite 1721L-81 2TKA00002277 1/10 white 1723S80-84 2TKA00000999 1/10
aluminium 1721L-83 2TKA00002278 1/10 anthracite 1723S80-81 2TKA00000997 1/10
aluminium 1723S80-83 2TKA00000998 1/10
Corner installation box 85mm, IP21
Surface mounting box for 2 devices, also for electronic
devices. Horizontal or vertical installation in corners. 11
Use with 85mm 2-gang cover frame.

white 1722H-84 2TKA00002279 1/20
anthracite 1722H-81 2TKA00002280 1/20
aluminium 1722H-83 2TKA00002281 1/20

Surface mounting bottom plate, IP21/IP44
Surface mounting bottom plate for flush mounted
products, insert height max. 26mm. To be combined
with 85mm and 100mm surface mounting cover frames
172xS85-xx and 172xS100-xx. Socket outlets are IP44
when using center plates with hinged lid. Switches and
push switches are IP44 when combined with screw
fastening rocker. Wires must be installed downwards
for IP44 protection class. Dimmers do not fit in the box.
2456.26 2TKA000769G1 10/100

DCL lamp outlet for mounting boxes
The DCL outlet can be installed on standard wall
mounting boxes (screw distance c/c 60 mm). It is safe
and easy to use for the end consumer, as they can
snap-in the DCL plug in the socket. The outlet is
typically installed on wall but can also be installed in
ceiling.
85x85mm
white AKK6-84 2TKA00000934 10/100
anthracite AKK6-81 2TKA00000936 10/100
aluminium AKK6-83 2TKA00000935 10/100
