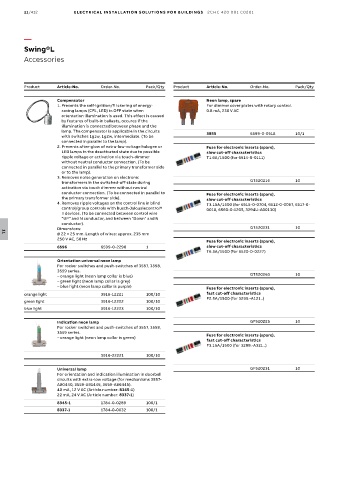

11/412 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Swing®L
Accessories

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Compensator Neon lamp, spare
1. Prevents the self-ignition/fl ickering of energy- For dimmer cover plates with rotary control.
saving lamps (CFL, LED) in OFF state when 0.8 mA, 230 V AC
orientation illumination is used. This effect is caused
by features of built-in ballasts, occures if the
illumination is connected between phase and the
lamp. The compensator is applicable in the circuits
with switches 1g1w, 1g2w, intermediate. (To be 3855 6599-0-0518 10/1
connected in parallel to the lamp).
2. Prevents after-glow of extra-low-voltage halogen or Fuse for electronic inserts (spare),
LED lamps in the deactivated state due to possible slow cut-off characteristics
ripple voltage or activation via touch-dimmer T1.6A/1500 (for 6514-0-0111)
without neutral conductor connection. (To be
connected in parallel to the primary transformer side
or to the lamp).
3. Removes noise generation on electronic
transformers in the switched-off state during GT520216 10
activation via touch dimmer without neutral
conductor connection. (To be connected in parallel to Fuse for electronic inserts (spare),
the primary transformer side). slow cut-off characteristics
4. Removes ripple voltages on the control line in blind T3.15A/1500 (for 6515-0-0704, 6512-0-0057, 6517-0-
control/group controls with Busch-Jalousiecontrol® 0018, 6560-0-1205, 3294U-A00130)
II devices. (To be connected between control wire
“UP” and N conductor, and between “Down” and N
conductor).
Dimensions: GT520231 10
∅ 22 × 25 mm. Length of wires: approx. 235 mm
11
250 V AC, 50 Hz
Fuse for electronic inserts (spare),
6596 6599-0-2290 1 slow cut-off characteristics
T6.3A/1500 (for 6520-0-0227)
Orientation universal neon lamp
For rocker switches and push-switches of 3557, 3558,
3559 series.
– orange light (neon lamp collar is blue) GT520263 10
– green light (neon lamp collar is grey)
– blue light (neon lamp collar is purple)
Fuse for electronic inserts (spare),
orange light 3916-12221 100/10 fast cut-off characteristics
F2.5A/1500 (for 3299.-A121..)
green light 3916-12222 100/10
blue light 3916-12223 100/10

Indication neon lamp GF520225 10
For rocker switches and push-switches of 3557, 3558,
3559 series.
– orange light (neon lamp collar is green) Fuse for electronic inserts (spare),
fast cut-off characteristics
F3.15A/1500 (for 3299.-A321..)
3916-22221 100/10

Universal lamp GF520231 10
For orientation and indication illumination in doorbell
circuits with extra-low voltage (for mechanisms 3557-
A80440, 3559-A91445, 3559-A86445).
40 mA, 12 V AC (Article number: 8345-1)
22 mA, 24 V AC (Article number: 8337-1)
8345-1 1784-0-0289 100/1
8337-1 1784-0-0032 100/1
