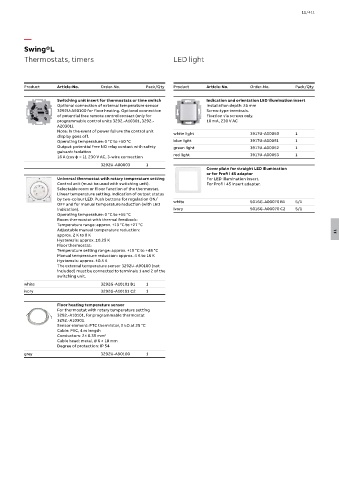

Page 1517 - Din prodcuts 2020

11/411

—
Swing®L
Thermostats, timers LED light

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Switching unit insert for thermostats or time switch Indication and orientation LED illumination insert
Optional connection of external temperature sensor Installation depth: 25 mm
3292U-A90100 for floor heating. Optional connection Screw-type terminals.
of potential free remote control contact (only for Fixation via screws only.
programmable control units 3292.-A10301, 3292.- 10 mA, 230 V AC
A20301).
Note: In the event of power failure the control unit
display goes off. white light 3917U-A00050 1
Operating temperature: 0 °C to +50 °C blue light 3917U-A00051 1
Output: potential free NO relay contact with safety green light 3917U-A00052 1
galvanic isolation
16 A (cos φ = 1), 230 V AC, 3-wire connection red light 3917U-A00053 1
3292U-A00003 1
Cover plate for straight LED illumination
or for Profi l 45 adapter
Universal thermostat with rotary temperature setting For LED illumination insert.
Control unit (must be used with switching unit). For Profi l 45 insert adapter.
Selectable room or fl oor function of the thermostat.
Linear temperature setting. Indication of output status
by two-colour LED. Push buttons for regulation ON/
OFF and for manual temperature reduction (with LED white 5016G-A00070 B1 5/1
indication). ivory 5016G-A00070 C2 5/1
Operating temperature: 0 °C to +55 °C
Room thermostat with thermal feedback:
Temperature range: approx. +13 °C to +27 °C
Adjustable manual temperature reduction: 11
approx. 2 K to 8 K
Hysteresis: approx. ±0.25 K
Floor thermostat:
Temperature setting range: approx. +15 °C to +48 °C
Manual temperature reduction: approx. 4 K to 16 K
Hysteresis: approx. ±0.5 K
The external temperature sensor 3292U-A90100 (not
included) must be connected to terminals 1 and 2 of the
switching unit.
white 3292G-A10101 B1 1
ivory 3292G-A10101 C2 1

Floor heating temperature sensor
For thermostat with rotary temperature setting
3292.-A10101, for programmable thermostat
3292.-A10301.
Sensor element: PTC thermistor, 2 kΩ at 25 °C
Cable: PVC, 4 m length
Conductors: 2× 0.35 mm 2
Cable head: metal, ∅ 6 × 18 mm
Degree of protection: IP 54
grey 3292U-A90100 1
