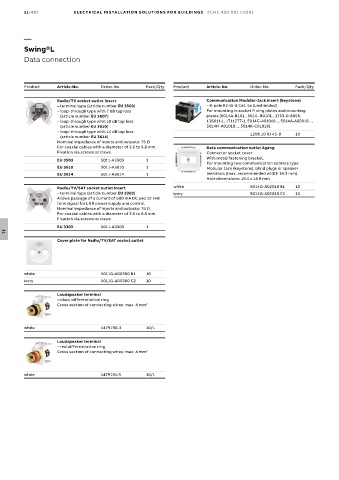

11/410 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Swing®L
Data connection

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Radio/TV socket outlet insert Communication Modular-Jack insert (keystone)

– terminal type (article number EU 3503) – 8-pole RJ 45-8 Cat. 5e (unshielded)
– loop-through type with 7 dB tap loss For mounting in socket fi xing plates and mounting
(article number EU 3607) plates (5014A-B101., 5014.-B0101., 1753-0-8055,
– loop-through type with 10 dB tap loss 136811-1, 1711277-1, 5014G-A01018 .., 5014A-A02018 ..,
(article number EU 3610) 5014H-A01018 .., 5014K-C01018).
– loop-through type with 14 dB tap loss 1208.10 RJ 45-8 10
(article number EU 3614)
Nominal impedance of inputs and outputs: 75 Ω
For coaxial cables with a diameter of 3.6 to 6.8 mm. Data communication outlet 2gang
Fixation via screws or claws. Connector socket cover
EU 3503 5011-A3503 1 With metal fastening bracket.
For mounting two communication sockets type
EU 3610 5011-A3610 1 Modular Jack (keystone), blind plugs or speaker
EU 3614 5011-A3614 1 terminals (max. recommended width 18.3 mm).
Hole dimensions: 19.4 x 14.8 mm
Radio/TV/SAT socket outlet insert white 5014G-A02018 B1 10
– terminal type (article number EU 3303) ivory 5014G-A02018 C1 10
Allows passage of a current of 500 mA DC and 22 kHz
tone signal for LNB power supply and control.
Nominal impedance of inputs and outputs: 75 Ω
For coaxial cables with a diameter of 3.6 to 6.8 mm.
Fixation via screws or claws.
EU 3303 5011-A3303 1
11
Cover plate for Radio/TV/SAT socket outlet

white 5011G-A00300 B1 10
ivory 5011G-A00300 C2 10

Loudspeaker terminal
– black differentiation ring
Cross section of connecting wires: max. 4 mm 2

white 1479190-3 10/1

Loudspeaker terminal
– red differentiation ring
Cross section of connecting wires: max. 4 mm 2

white 1479191-3 10/1
