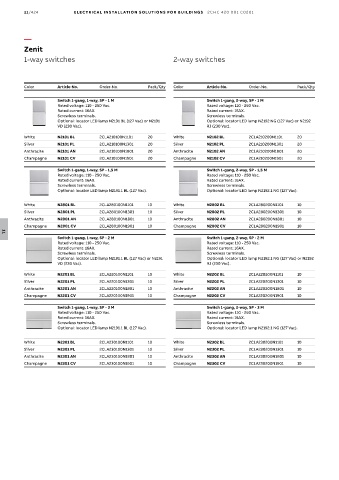

11/424 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Zenit
1-way switches 2-way switches

Color Article-No. Order-No. Pack/Qty Color Article-No. Order-No. Pack/Qty

Switch 1-gang, 1-way, SP - 1 M Switch 1-gang, 2-way, SP - 1 M
Rated voltage: 110 - 250 Vac. Rated voltage: 110 - 250 Vac.
Rated current: 16AX. Rated current: 16AX.
Screwless terminals. Screwless terminals.
Optional: locator LED lamp N2191 BL (127 Vac) or N2191 Optional: locator LED lamp N2192 NG (127 Vac) or N2192
VD (230 Vac). RJ (230 Vac).

White N2101 BL 2CLA210100N1101 20 White N2102 BL 2CLA210200N1101 20
Silver N2101 PL 2CLA210100N1301 20 Silver N2102 PL 2CLA210200N1301 20
Anthracite N2101 AN 2CLA210100N1801 20 Anthracite N2102 AN 2CLA210200N1801 20
Champagne N2101 CV 2CLA210100N1901 20 Champagne N2102 CV 2CLA210200N1901 20

Switch 1-gang, 1-way, SP - 1,5 M Switch 1-gang, 2-way, SP - 1,5 M
Rated voltage: 110 - 250 Vac. Rated voltage: 110 - 250 Vac.
Rated current: 16AX. Rated current: 16AX.
Screwless terminals. Screwless terminals.
Optional: locator LED lamp N2191.1 BL (127 Vac). Optional: locator LED lamp N2192.1 NG (127 Vac).

White N2801 BL 2CLA280100N1101 10 White N2802 BL 2CLA280200N1101 10
Silver N2801 PL 2CLA280100N1301 10 Silver N2802 PL 2CLA280200N1301 10
Anthracite N2801 AN 2CLA280100N1801 10 Anthracite N2802 AN 2CLA280200N1801 10
Champagne N2801 CV 2CLA280100N1901 10 Champagne N2802 CV 2CLA280200N1901 10
11
Switch 1-gang, 1-way, SP - 2 M Switch 1-gang, 2-way, SP - 2 M
Rated voltage: 110 - 250 Vac. Rated voltage: 110 - 250 Vac.
Rated current: 16AX. Rated current: 16AX.
Screwless terminals. Screwless terminals.
Optional: locator LED lamp N2191.1 BL (127 Vac) or N2191 Optional: locator LED lamp N2192.1 NG (127 Vac) or N2192
VD (230 Vac). RJ (230 Vac).

White N2201 BL 2CLA220100N1101 10 White N2202 BL 2CLA220200N1101 10
Silver N2201 PL 2CLA220100N1301 10 Silver N2202 PL 2CLA220200N1301 10
Anthracite N2201 AN 2CLA220100N1801 10 Anthracite N2202 AN 2CLA220200N1801 10
Champagne N2201 CV 2CLA220100N1901 10 Champagne N2202 CV 2CLA220200N1901 10

Switch 1-gang, 1-way, SP - 3 M Switch 1-gang, 2-way, SP - 3 M
Rated voltage: 110 - 250 Vac. Rated voltage: 110 - 250 Vac.
Rated current: 16AX. Rated current: 16AX.
Screwless terminals. Screwless terminals.
Optional: locator LED lamp N2191.1 BL (127 Vac). Optional: locator LED lamp N2192.1 NG (127 Vac).

White N2301 BL 2CLA230100N1101 10 White N2302 BL 2CLA230200N1101 10
Silver N2301 PL 2CLA230100N1301 10 Silver N2302 PL 2CLA230200N1301 10
Anthracite N2301 AN 2CLA230100N1801 10 Anthracite N2302 AN 2CLA230200N1801 10
Champagne N2301 CV 2CLA230100N1901 10 Champagne N2302 CV 2CLA230200N1901 10
