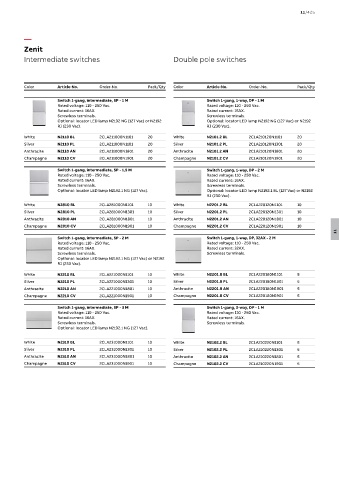

Page 1531 - Din prodcuts 2020

11/425

—
Zenit
Intermediate switches Double pole switches

Color Article-No. Order-No. Pack/Qty Color Article-No. Order-No. Pack/Qty

Switch 1-gang, intermediate, SP - 1 M Switch 1-gang, 1-way, DP - 1 M
Rated voltage: 110 - 250 Vac. Rated voltage: 110 - 250 Vac.
Rated current: 16AX. Rated current: 16AX.
Screwless terminals. Screwless terminals.
Optional: locator LED lamp N2192 NG (127 Vac) or N2192 Optional: locator LED lamp N2192 NG (127 Vac) or N2192
RJ (230 Vac). RJ (230 Vac).

White N2110 BL 2CLA211000N1101 20 White N2101.2 BL 2CLA210120N1101 20
Silver N2110 PL 2CLA211000N1101 20 Silver N2101.2 PL 2CLA210120N1301 20
Anthracite N2110 AN 2CLA211000N1801 20 Anthracite N2101.2 AN 2CLA210120N1801 20
Champagne N2110 CV 2CLA211000N1901 20 Champagne N2101.2 CV 2CLA210120N1901 20

Switch 1-gang, intermediate, SP - 1,5 M Switch 1-gang, 1-way, DP - 2 M
Rated voltage: 110 - 250 Vac. Rated voltage: 110 - 250 Vac.
Rated current: 16AX. Rated current: 16AX.
Screwless terminals. Screwless terminals.
Optional: locator LED lamp N2192.1 NG (127 Vac). Optional: locator LED lamp N2192.1 BL (127 Vac) or N2192
RJ (230 Vac).
White N2810 BL 2CLA281000N1101 10 White N2201.2 BL 2CLA220120N1101 10
Silver N2810 PL 2CLA281000N1301 10 Silver N2201.2 PL 2CLA220120N1301 10
Anthracite N2810 AN 2CLA281000N1801 10 Anthracite N2201.2 AN 2CLA220120N1801 10
Champagne N2810 CV 2CLA281000N1901 10 Champagne N2201.2 CV 2CLA220120N1901 10
11
Switch 1-gang, intermediate, SP - 2 M Switch 1-gang, 1-way, DP, 32AX - 2 M
Rated voltage: 110 - 250 Vac. Rated voltage: 110 - 250 Vac.
Rated current: 16AX. Rated current: 32AX.
Screwless terminals. Screwless terminals.
Optional: locator LED lamp N2192.1 NG (127 Vac) or N2192
RJ (230 Vac).

White N2210 BL 2CLA221000N1101 10 White N2201.8 BL 2CLA220180N1101 5
Silver N2210 PL 2CLA221000N1301 10 Silver N2201.8 PL 2CLA220180N1301 5
Anthracite N2210 AN 2CLA221000N1801 10 Anthracite N2201.8 AN 2CLA220180N1801 5
Champagne N2210 CV 2CLA221000N1901 10 Champagne N2201.8 CV 2CLA220180N1901 5

Switch 1-gang, intermediate, SP - 3 M Switch 1-gang, 2-way, DP - 1 M
Rated voltage: 110 - 250 Vac. Rated voltage: 110 - 250 Vac.
Rated current: 16AX. Rated current: 16AX.
Screwless terminals. Screwless terminals.
Optional: locator LED lamp N2192.1 NG (127 Vac).

White N2310 BL 2CLA231000N1101 10 White N2102.2 BL 2CLA210220N1101 5
Silver N2310 PL 2CLA231000N1301 10 Silver N2102.2 PL 2CLA210220N1301 5
Anthracite N2310 AN 2CLA231000N1801 10 Anthracite N2102.2 AN 2CLA210220N1801 5
Champagne N2310 CV 2CLA231000N1901 10 Champagne N2102.2 CV 2CLA210220N1901 5
