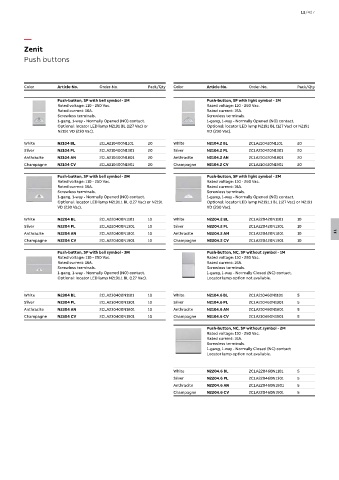

Page 1533 - Din prodcuts 2020

11/427

—
Zenit
Push buttons

Color Article-No. Order-No. Pack/Qty Color Article-No. Order-No. Pack/Qty

Push-button, SP with bell symbol - 1M Push-button, SP with light symbol - 1M
Rated voltage: 110 - 250 Vac. Rated voltage: 110 - 250 Vac.
Rated current: 16A. Rated current: 16A.
Screwless terminals. Screwless terminals.
1-gang, 1-way - Normally Opened (NO) contact. 1-gang, 1-way - Normally Opened (NO) contact.
Optional: locator LED lamp N2191 BL (127 Vac) or Optional: locator LED lamp N2191 BL (127 Vac) or N2191
N2191 VD (230 Vac). VD (230 Vac).

White N2104 BL 2CLA210400N1101 20 White N2104.2 BL 2CLA210420N1101 20
Silver N2104 PL 2CLA210400N1301 20 Silver N2104.2 PL 2CLA210420N1301 20
Anthracite N2104 AN 2CLA210400N1801 20 Anthracite N2104.2 AN 2CLA210420N1801 20
Champagne N2104 CV 2CLA210400N1901 20 Champagne N2104.2 CV 2CLA210420N1901 20
Push-button, SP with bell symbol - 2M Push-button, SP with light symbol - 2M
Rated voltage: 110 - 250 Vac. Rated voltage: 110 - 250 Vac.
Rated current: 16A. Rated current: 16A.
Screwless terminals. Screwless terminals.
1-gang, 1-way - Normally Opened (NO) contact. 1-gang, 1-way - Normally Opened (NO) contact.
Optional: locator LED lamp N2191.1 BL (127 Vac) or N2191 Optional: locator LED lamp N2191.1 BL (127 Vac) or N2191
VD (230 Vac). VD (230 Vac).

White N2204 BL 2CLA220400N1101 10 White N2204.2 BL 2CLA220420N1101 10
Silver N2204 PL 2CLA220400N1301 10 Silver N2204.2 PL 2CLA220420N1301 10
Anthracite N2204 AN 2CLA220400N1801 10 Anthracite N2204.2 AN 2CLA220420N1801 10 11
Champagne N2204 CV 2CLA220400N1901 10 Champagne N2204.2 CV 2CLA220420N1901 10

Push-button, SP with bell symbol - 3M Push-button, NC, SP without symbol - 1M
Rated voltage: 110 - 250 Vac. Rated voltage: 110 - 250 Vac.
Rated current: 16A. Rated current: 16A.
Screwless terminals. Screwless terminals.
1-gang, 1-way - Normally Opened (NO) contact. 1-gang, 1-way - Normally Closed (NC) contact.
Optional: locator LED lamp N2191.1 BL (127 Vac). Locator lamp option not available.

White N2304 BL 2CLA230400N1101 10 White N2104.6 BL 2CLA210460N1101 5
Silver N2304 PL 2CLA230400N1301 10 Silver N2104.6 PL 2CLA210460N1301 5
Anthracite N2304 AN 2CLA230400N1801 10 Anthracite N2104.6 AN 2CLA210460N1801 5
Champagne N2304 CV 2CLA230400N1901 10 Champagne N2104.6 CV 2CLA210460N1901 5
Push-button, NC, SP without symbol - 2M
Rated voltage: 110 - 250 Vac.
Rated current: 16A.
Screwless terminals.
1-gang, 1-way - Normally Closed (NC) contact
Locator lamp option not available.

White N2204.6 BL 2CLA220460N1101 5
Silver N2204.6 PL 2CLA220460N1301 5
Anthracite N2204.6 AN 2CLA220460N1801 5
Champagne N2204.6 CV 2CLA220460N1901 5
